Amazin fishfinder ff777-pro-cwls (001191)

Newest Amazin fishfinder ff777-pro-cwls:

Base Three years sales experienceLegendary echo sounder Amazin ff777-w, Which is already 2 years in a row becomes the leader Sales in its category on Ozon, wildberries, Yandex market,Amazin teamStudied all feedback and recommendations from professional fishermen, and developed a new line of echo sounders Amazin ff777, Which meet all the needs of our customers.

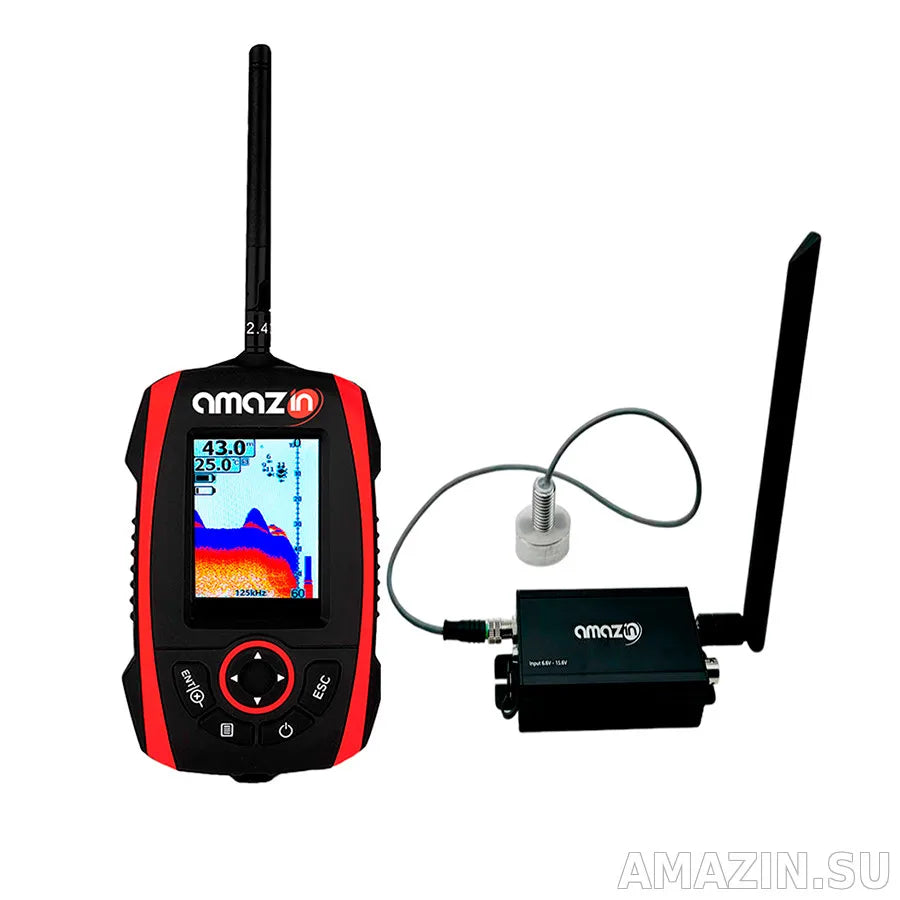

We present to your attention, Newest wireless echo sounder Amazin ff777-pro-cwls,Designed for internal installation of the sensor in the bait boat, With a signal range of up to 300 meters,Which Will be a worthy replacement Lucky ff918-cwls and toslon tf520 echo sounder!

Ship-built CWLS Sensor:

• Designed for installation in a feeding boat with an external (external) on/off button for the sensor.

• The transmitter is powered by Li-ion battery 2s-4s anti-interference, input voltage 6.6V - 15.6v.

• It is provided to connect directly to the onboard food of the bait boat with protection against interference.

• Cwls sensor works 125 kilohertz 90 ° coverage. Gives a more detailed image of the surface and objects in the water column, allowing you to search for fish at a depth of 60 cm to 45 m! The transmitter voltage (charge) is displayed on the main block screen.

Suitable for fishing both novice fishermen and real professionals! Unlike competitors, this echo sounder is much more informative, more precise, and displays a lot more detail.

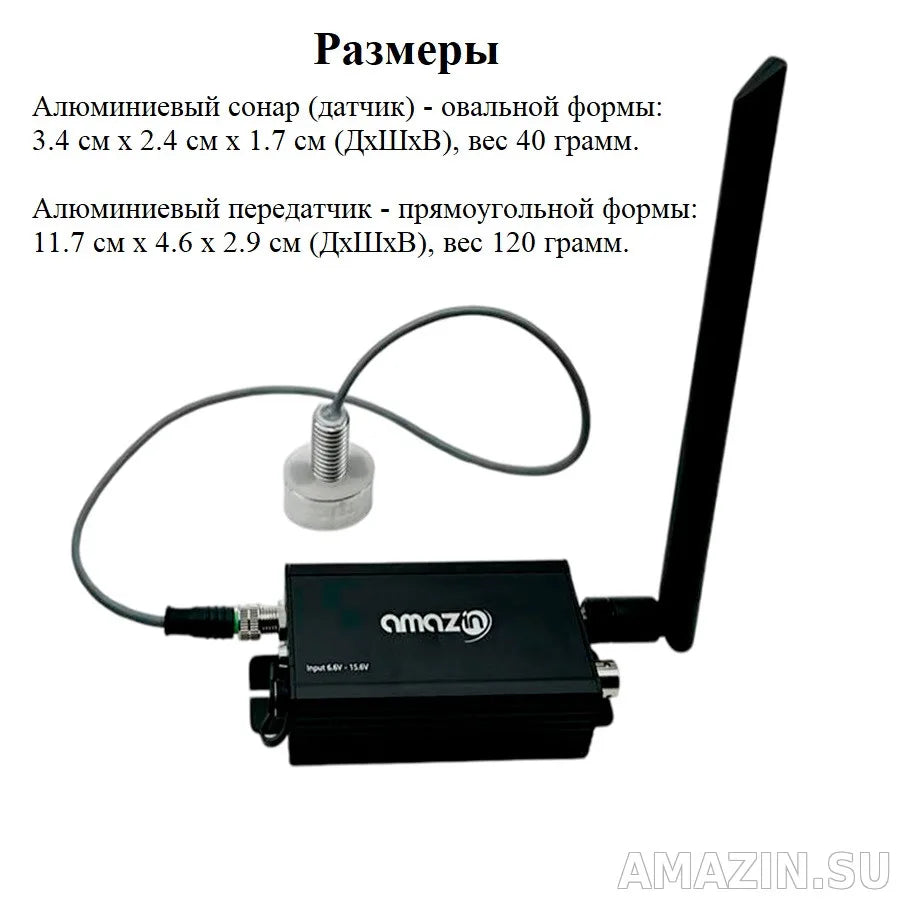

Sizes:

• Aluminum sonar (sensor)-oval shape: 3.4 cm x 2.4 cm x 1.7 cm (dxshhv), weight 40 grams.

• Aluminum transmitter-rectangular shape: 11.7 cm x 4.6x2.9 cm (dxshhw), weight 120 grams.

What appeared in the new version of Amazin echo sounder Ff777-pro-cwls?

• Increased signal range up to 300 meters,Thanks to Reinforced external antenna and wireless cwls sensor, Embedded in a feeding boat of any price segment. This will give you new perspectives and help you find fish even at a considerable distance.

• The scanning speed of the reservoir with the cwls echo sounder sensor reaches 15 times per second, Using a beam operating at a frequency of 125 kilohertz with a wide coverage angle of 90 °. Due to this speed, information about the reflected signal is transmitted to the main unit Ff777-pro In its pure form, without distortion and without adding lost blocks (as, for example, this is done on lucky echo sounders, etc., where fictitious data is added when data is lost).

• For reliable data transmission and lossless, More stable and fast is 2,4 GHz frequency, which is used on our echo sounder. The 433 frequency is insufficient to transmit this amount of data.

• The possibility of selecting communication channels from 1 to 13 is realized. Cases arise when other 2.4 GHz signal sources, such as feedboats and other echo sounders operating at the same frequency, interfere with the echo sounder. To prevent this phenomenon, our Amazin ff777-pro-swls echo sounder implements the ability to select operating channels, which prevents interference, and therefore possible impact on the signal.

• Simplified display mode.When fishing, unnecessary information can be distracting (Depth, temperature, charge, communication channel), So we implemented the display mode selection when scanning, leaving Display of bottom structure, presence and depth of fish.

• Wireless ball sensorShore fishing(Bought separately).

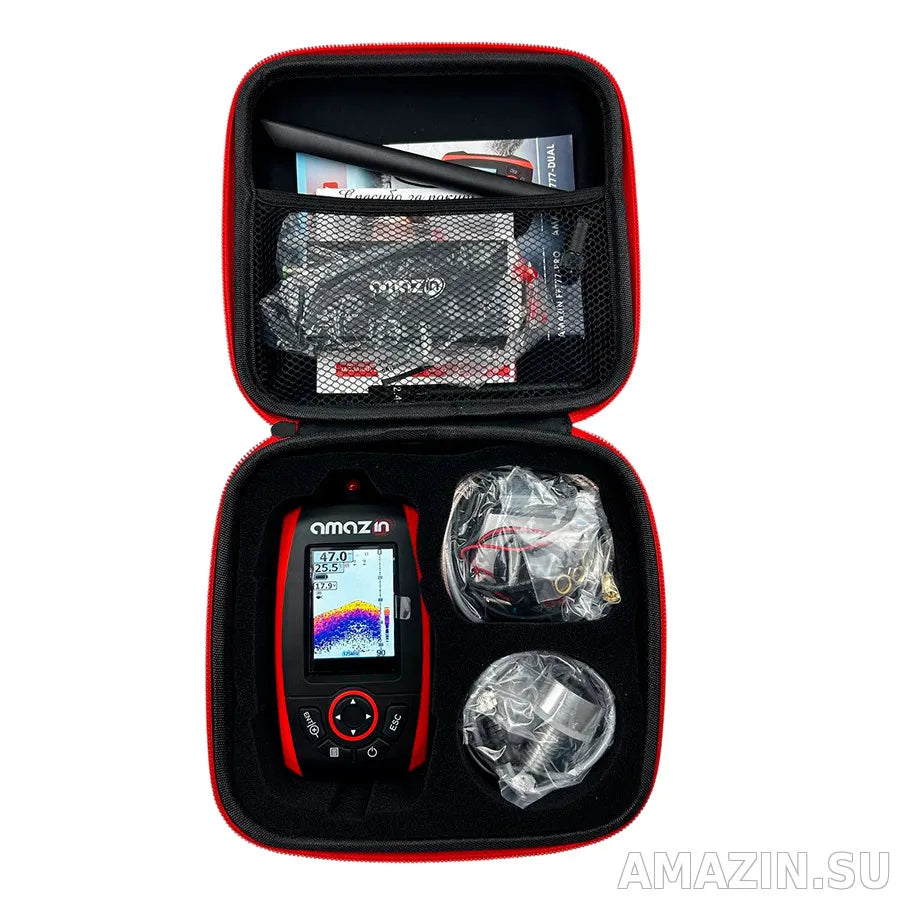

• Portable brand bag, Included in the kit, will make it convenient to store and carry all the echo sounder accessories, thus providing convenience and tidy while fishing.

But not only functional characteristics make this echo sounder special. Beautiful design in branded Amazin-red color,Makes this echo sounder a bright accessory on any fishing. A Packaging box, Beautifully designed with care for every little thing, turns the acquisition into a real gift for any connoisseur of quality technology.

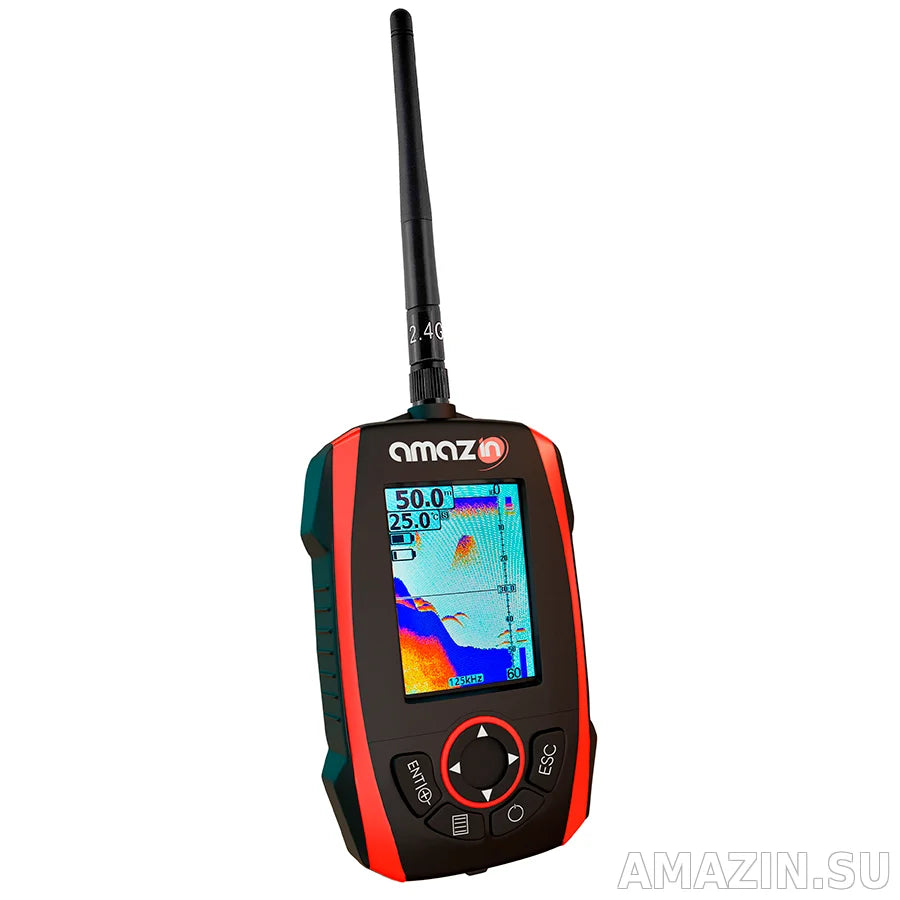

Amazon F777-Pro main echo sounder:

Has excellent tightness and water protection according to standardIP67. Bright, color display (512 colors), diagonal 61,1mm with resolution v320 X H240 pixels,Allowing you to fish even in sunny weather thanks to anti-glare surface! The sounder will display detailed information about the bottom topography, temperature and depth of the reservoir, and also show the presence of fish of three sizes: small, medium and large.

The unit is equipped with rechargeable Li-ion battery3000 mAhMagnifyingWorking time up to 20 hours!The charge level of the main unit is displayed on the screen in the form of battery indication(As on phone). WeightThe main block is 210 grams.Thanks to the brightRedFor inserts on the hull, an echo sounder will be easy to find if it accidentally falls into the mud on the shore or from the side of a boat. In addition, to ergonomics and prevent slipping out of your hands, the sides of the head unit were equipped with corrugated rubber inserts to allow the echo sounder to fit comfortably in your hand.

Russified menu and clear settings:

The echo sounder is controlled using 4 large buttons with an anti-slip coating and a circular joystick. There is a frame stand on the back of the block, with which you can place the echo sounder in an angle vertical position on a flat surface so that you can free your hands at any time. The echo sounder menu contains 17 languages, including Russian-use the device with maximum comfort in your native language! The menu also provides a function to suppress noise in the output image, which is very useful in a detailed study of the features of the reservoir. The basic settings are intuitive and do not require in-depth technical knowledge, so the echo sounder is suitable for both novice fishermen and real professionals!

Echo sounder features for boat Ff777-pro-cwls:

• Increased signal range up to 300 meters;

• Transmitter power supply From 2s-4S Battery Li-ion with anti-interference protection, input voltage 6.6V - 15.6V.;

• External button On/off the operation of the sensor;

• Bright transflective anti-glare LCD display with backlight (512 colors), Easily readable in the sun;

• Professional mode With the display of objects in arcs, which allows you to accurately determine the parameters of the object;

• Ability to select channels of work From 1 to 13, which prevents interference, and therefore possible influence on the signal;

• Advanced New Generation Processor;

• Simplified Data Display mode during scanning;

• Wireless ball sensorShore fishing(Bought separately);

• Magnification mode with picture-in-picture function, auto-track bottom and smart zoom;

• Convenient frame stand for the main unit;

• Depth scale with automatic and manual mode;

• Screen screenshot function- Allows you to study the picture in more detail at any time;

• Color theme selection Screen to adapt the picture to any conditions;

• The keel offset function allows depth correction;

• Setting the cleanliness of the relief surface, for accurate determination;

• Rubberized echo sounder body with positive buoyancy;

• Water temperature measurement;

• Setting Menu transparency for ease of display;

• Determining the depth of detection of fish and its size;

• Choice of battery voltage at which the echo sounder signals discharge;

• Fish and depth alarm;

• Built-in lithium battery of increased capacity in the unit;

• Volume Adjustment of sound signals;

• Automatic Activation of sonar when entering the water;

• Adjustment of the speed of the schedule;

• Charging the main unit from USB;

• Multilingual menu: English, Russian, French, Chinese, Japanese, Finnish, Polish, German, Italian, Spanish, Dutch, Korean, Swedish, Greek, Danish, Czech, portudish;

• 1 year warranty!

Characteristics of Echo soundaamazin Ff777-pro-cwls For the boat:

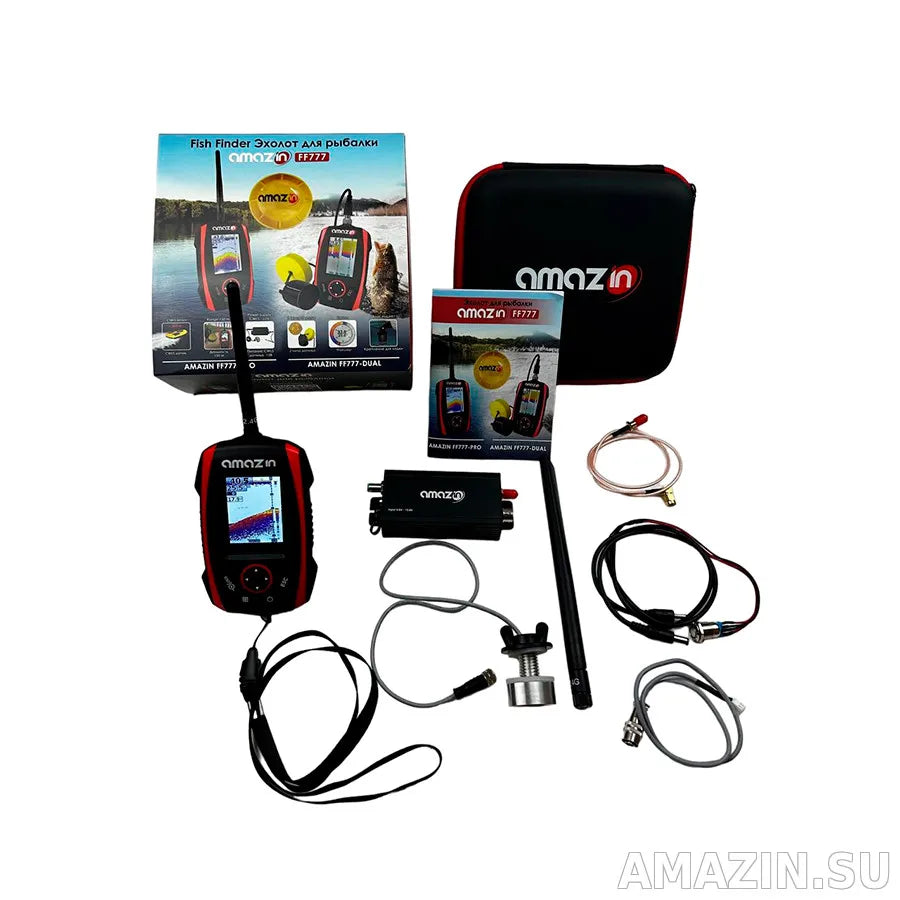

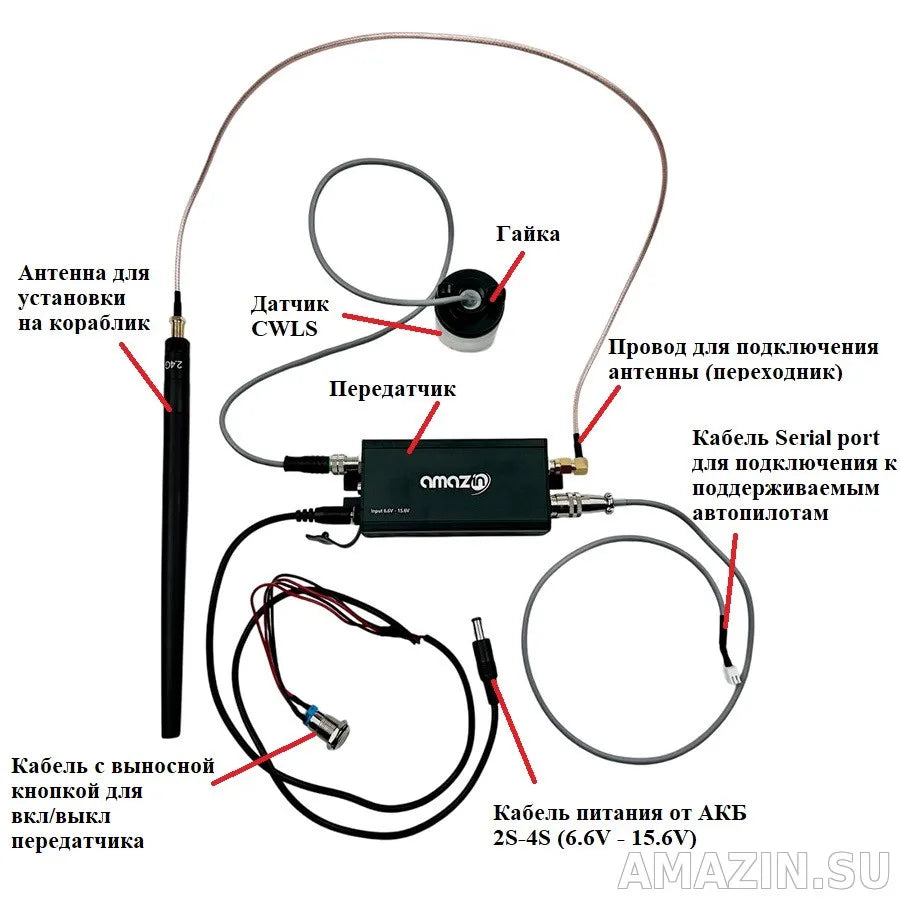

Echo sounder equipment AmazinFf777-pro-cwls:

• Main Block ff777-pro with color display x1;

• Sensor cwls x1;

• Transmitter x1;

• Antenna for the main unit x1;

• Antenna for the boat x1;

• Power cable x1;

• Cable for antenna (adapter) x1;

• Cable with external button for on/off transmitter x1;

• Serial port cable for connection to supported autopilots x1;

• Portable brand case x1;

• Neck strap x1;

• USB cable for charging the main unit x1;

• Instruction in Russian X1.
