8-digit Electronic Counter

Eight-bit LCD display, using two 1.5V AAA batteries, no external power supply.

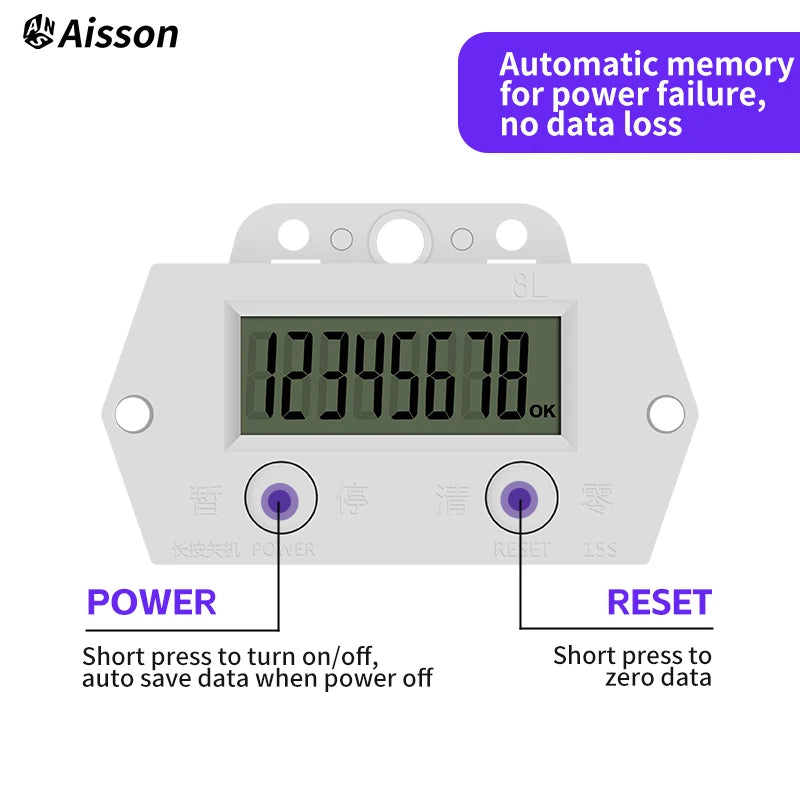

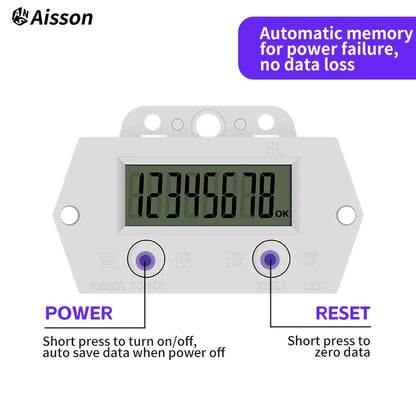

Pause/switch on/off key (POWER) short press to pause, long press to switch on/off.

Zero mode: long press 1.5s zero key, click the zero key 4 times to lock the machine function, can be normal counting, can not be reset.

Terminal on counting, counting range: 0-99999999 cycles

Minimum pulse width:2ms

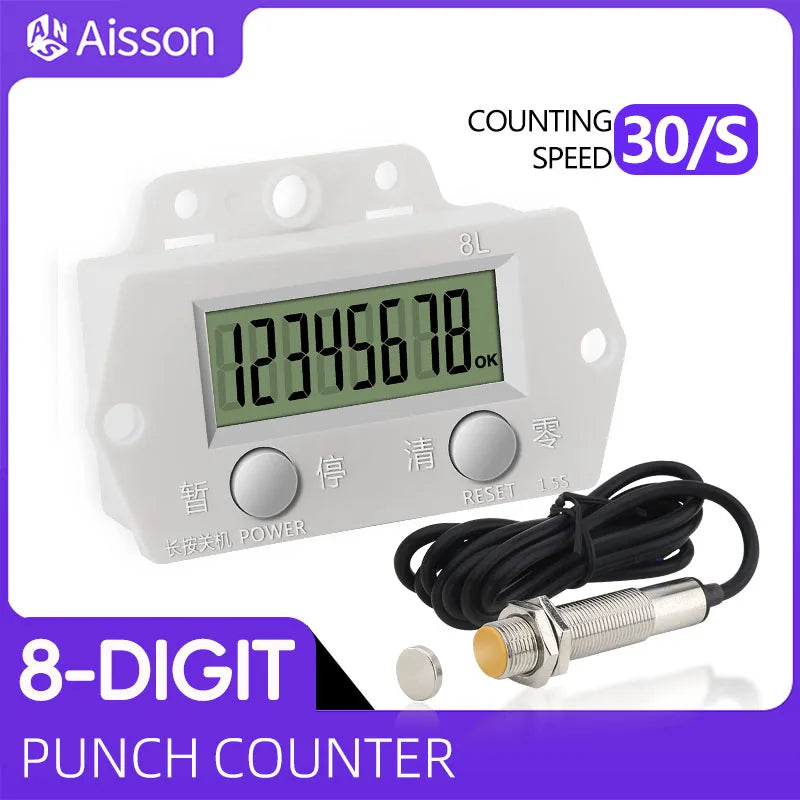

Maximum counting speed: 30 times/sec.

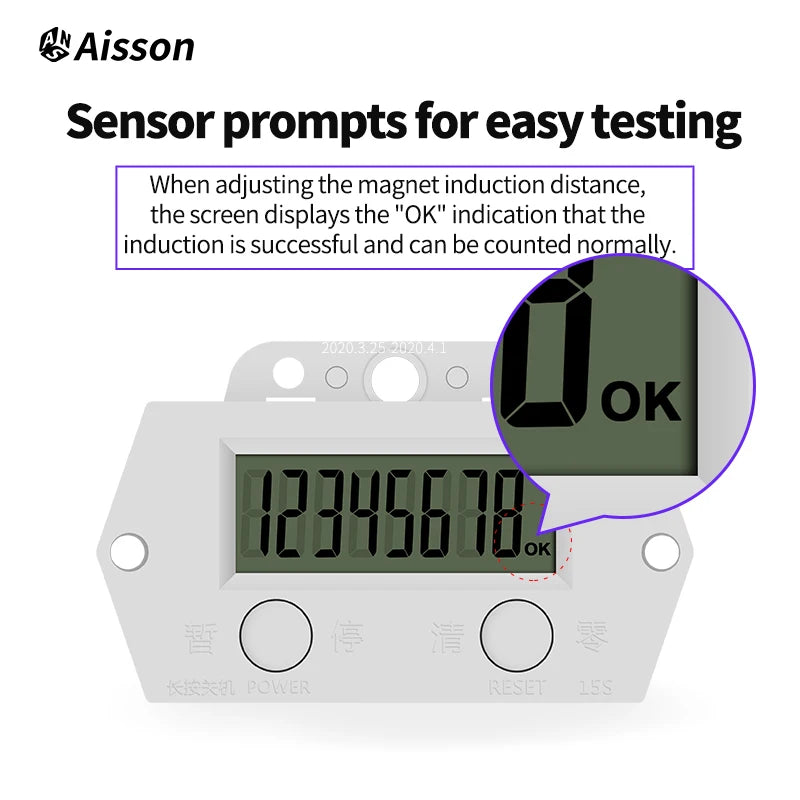

When the counting terminal is turned on, the screen displays "0K" indication mark.

Maximum resistance of contact on:≤1kΩ

Minimum resistance of disconnection:>1MΩ

Ambient temperature:-5-40℃.

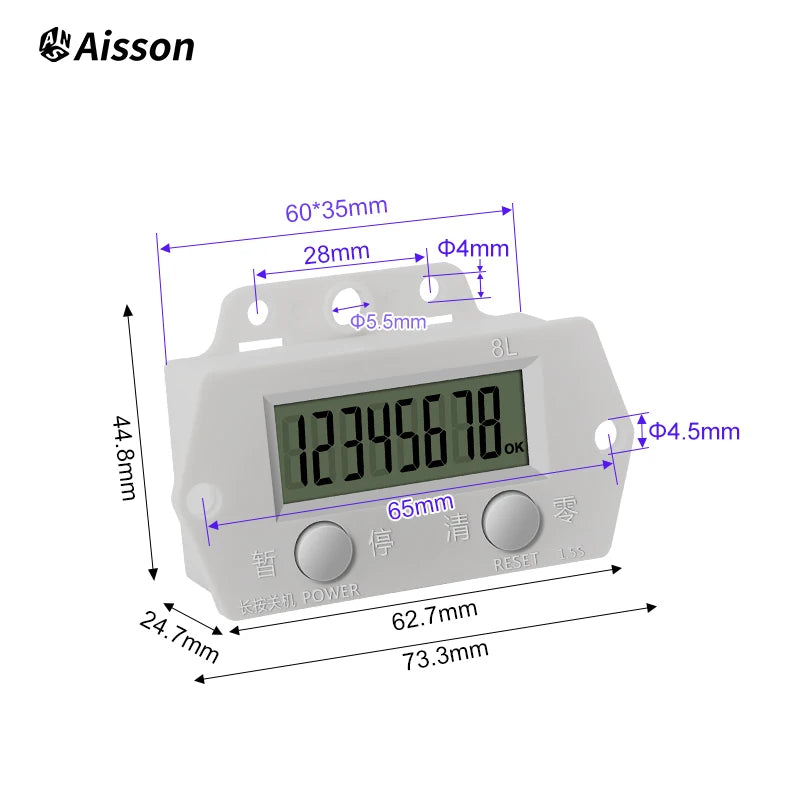

Overall dimensions:73*37*24mm

Opening size:60*35mm

Weight: about 70g.

Installation instructions: Install the counter by tilting it back 30 degrees, inserting it diagonally into the mounting hole, and then tightening the mounting screws!

Usage

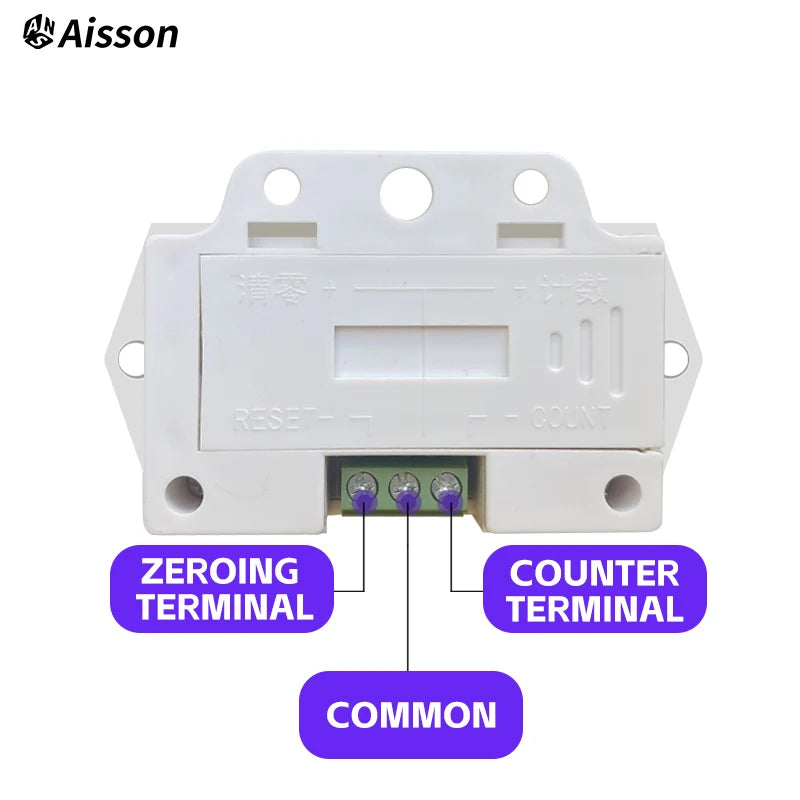

The public terminal and the counting terminal will be connected once and counted once; and when it is connected for more than 0.5 seconds, the LCD screen will display "OK" signal indication mark.

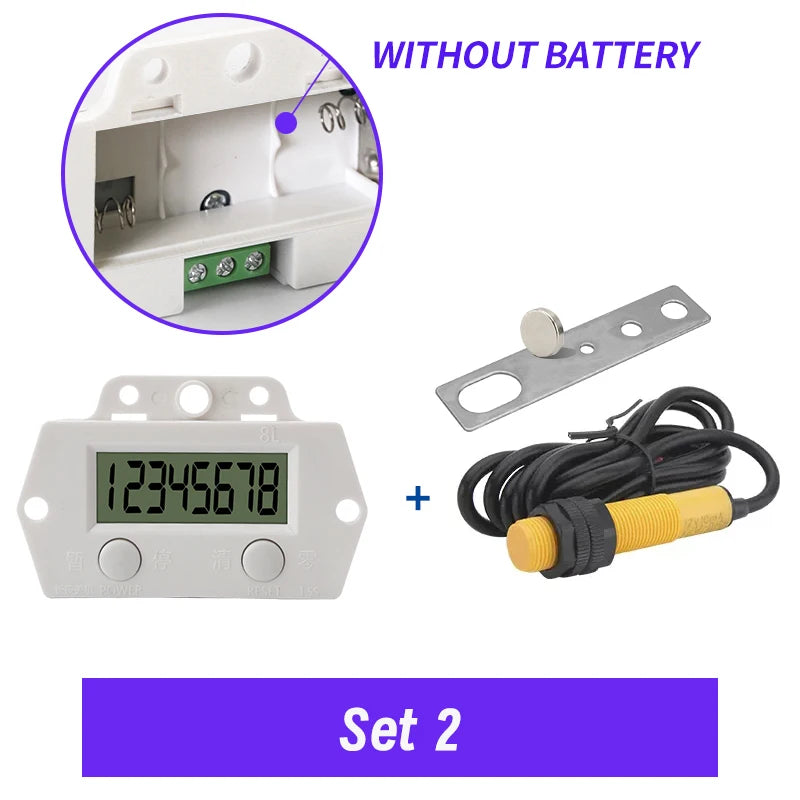

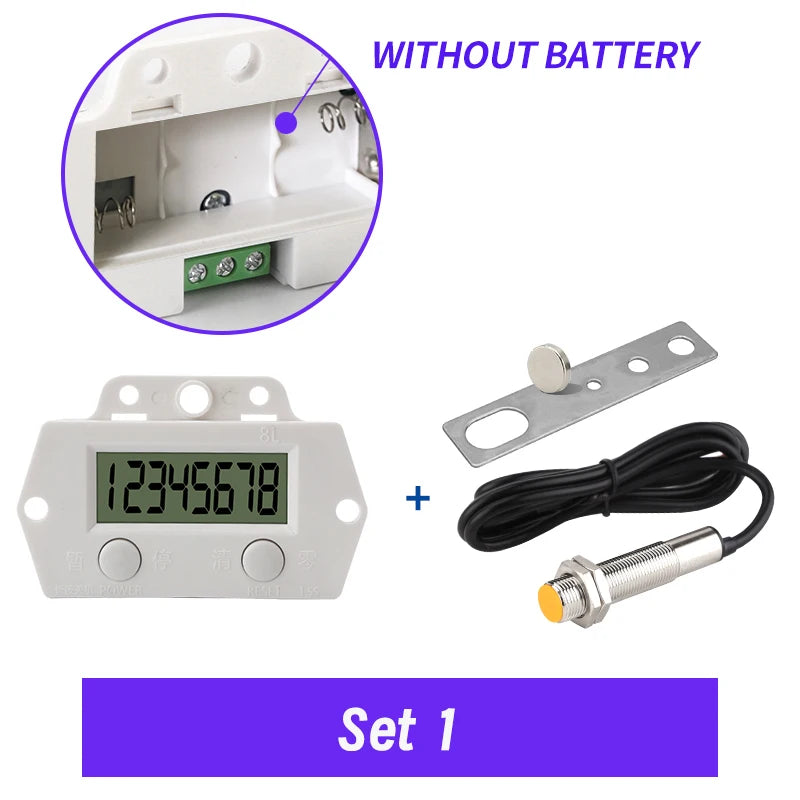

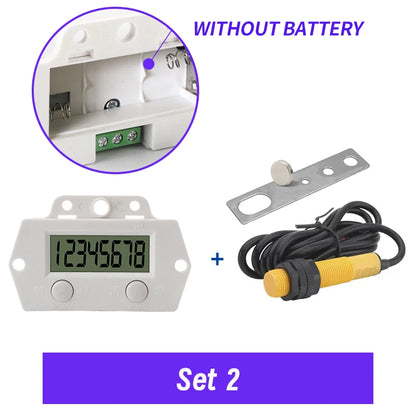

Magnetic induction switch can be selected, or other switches can be selected according to the actual situation, such as micro switch, travel switch, electronic switch (no voltage contact counting).

Notes and special instructions.

1. Counting and zeroing signals can only be inputted as non-voltage contact signals, no other electrical signals can be inputted.

2. The contact input should be reliable, so as to avoid false counting caused by contact jumping back, jittering, poor contact, and so on.

3. Avoid the same pipe or stranded wires with strong electric wires or power wires to avoid unnecessary interference.

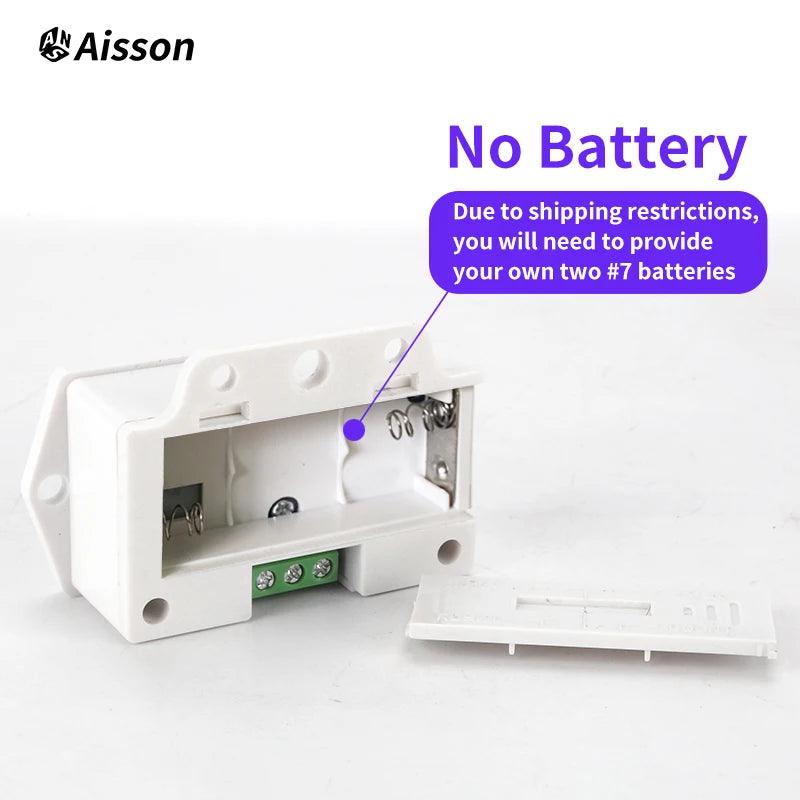

4. Use two AAA batteries, never external power supply (external power supply will damage the counter).
