2025 NEW LAUNCH X431 CRP919E BT OBD2 Scanner Bidirectional Scan Tool added CAN FD/DoIP OE-Level All System Diagnostic,with BT ad

2024 NEWEST LUANCH FIRST All System Diagnostic Scan Tool , New add CAN FD/DoIP and support Bidirectional

Two Version of LAUNCH CRP919E BT in Sale now :

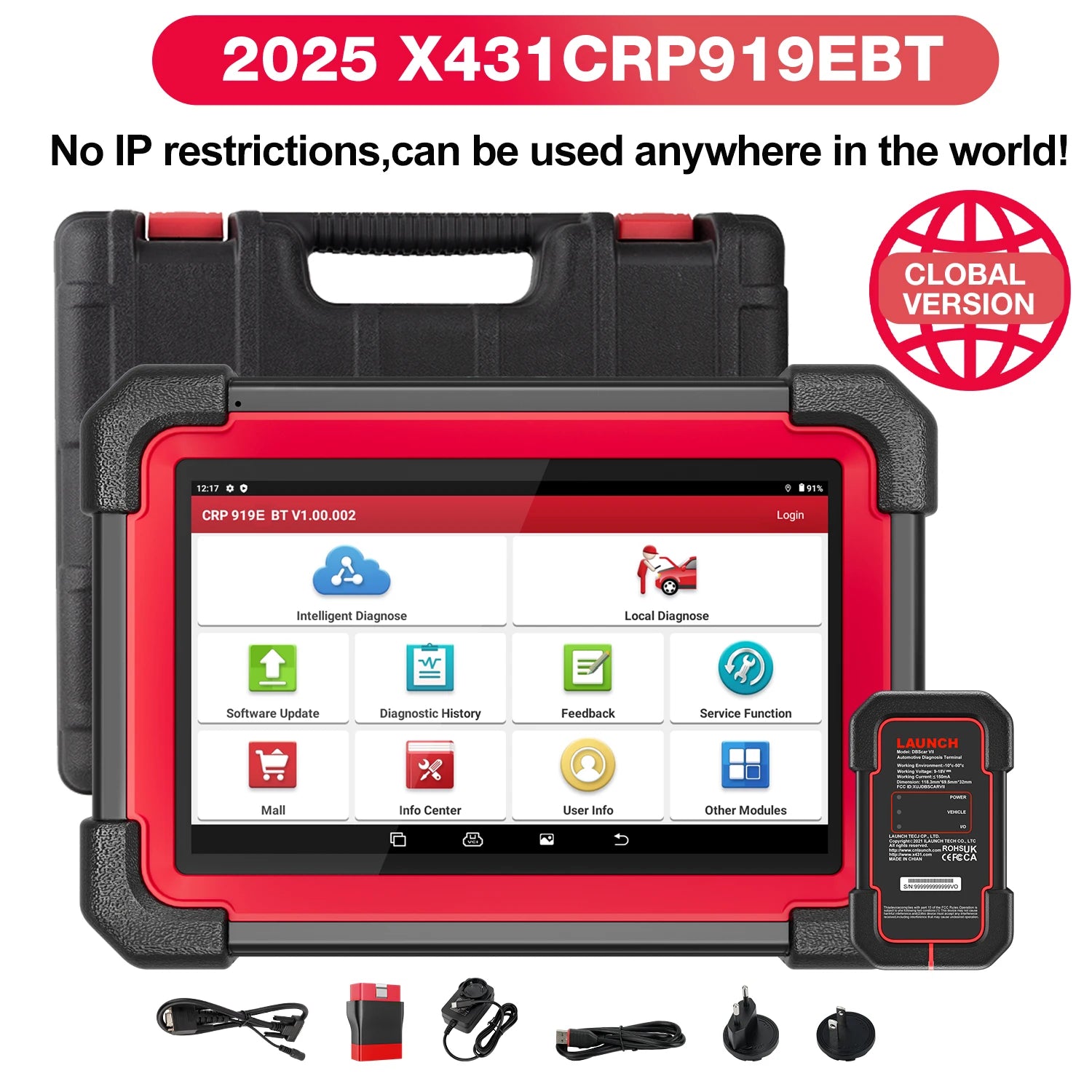

Type 1 is Global version , it works in Global , NO IP limited !

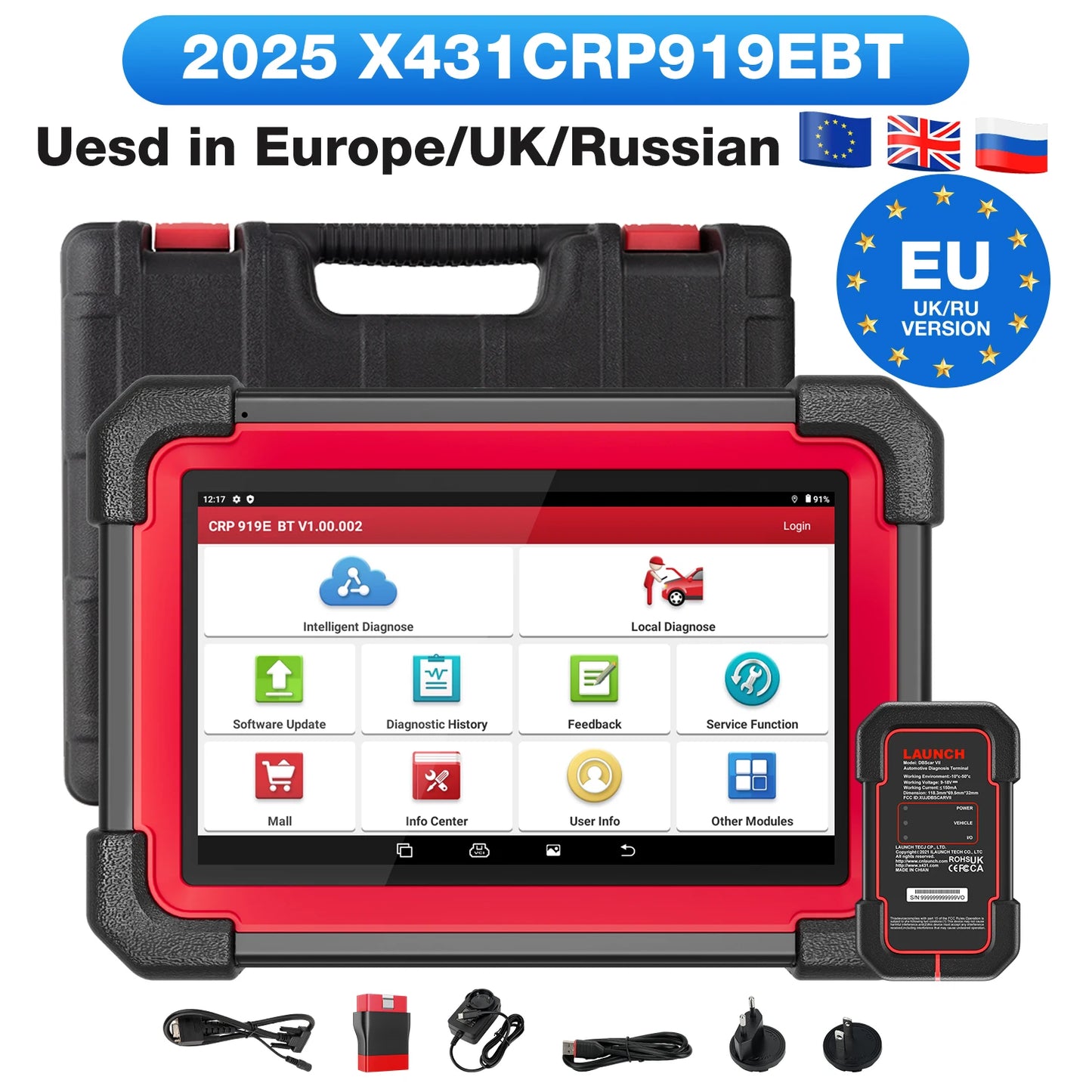

Type 2 is EU version, it works in all europe countries only . it is with EU IP limited , can not work out of Europe , pls note !

The EU Version is special for Europe Customers , the price is cheaper than Global version , pls choose this version if you are from Europe .

The packing list of them are same , do not worry !

Pls choose the correct version to order !!!

Selling Points:

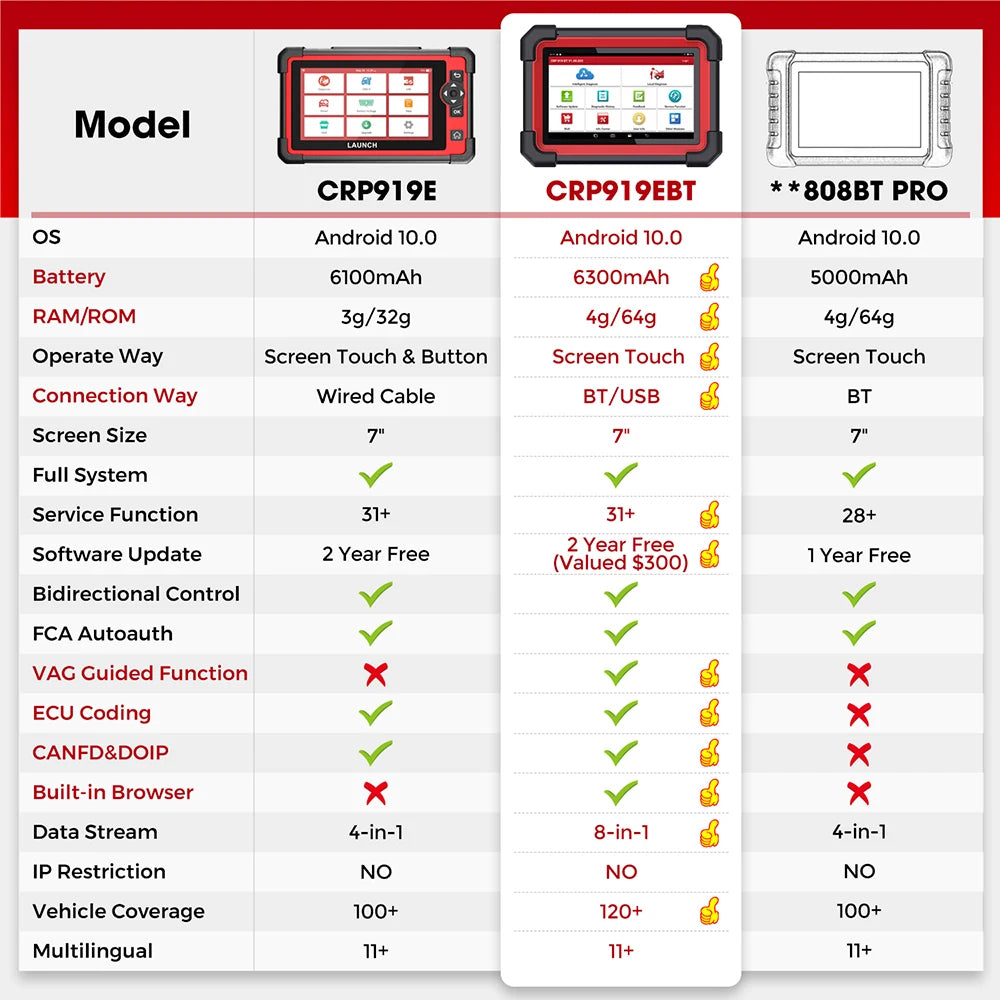

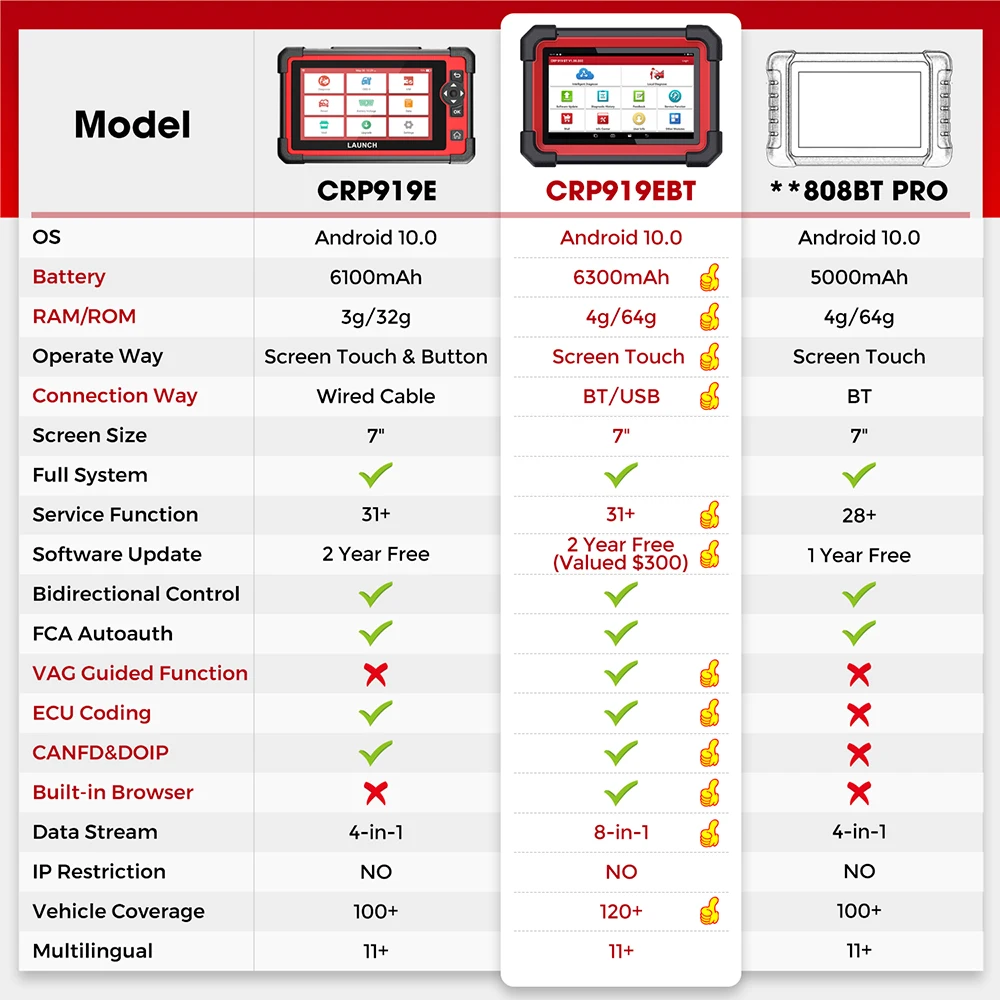

1.2024 NEWEST LUANCH TOP -ENHANCED BT-TECH ,   As the next-level Elite version, Launch CRP919EBT Elite beats CRP919E/ CRP909E/ CRP129E/ CRP123E wired tools in functionality and Communication. With 2024 newest Launch Bluetooth 5.1 DBSCAR VII dongle, Launch CRP919E BT supports both wireless VCI connection & cable connection, the equipped 130 b.ucks valued VCI works at 33ft(10m) range fastly and stably. Release yourselves and you can walk around when doing repairs!

2.FIRST All System Diagnostic Scan Tool,including Engine,Transmission, ABS, SRS, TPMS, EPB,Body System,Battery,ESP, IMMO etc.

3.Over 31 Service Reset Functions , including ABS Bleeding,TPMS Reset,Oil Lamp Reset, Electronic Throttle Sensor Reset,Injector Coding,SAS Reset,Brake-pad Reset,Gear Learning,IMMO Service,Battery Matching,DPF Regeneration,EGR Adaption,Suspension Matching,NOx Sensor Reset,Tyre Reset,Windows Calibration,Stop-start Reset, AC Initialization,AdBlue Reset,AFS Headlamp Reset,A/F Reset,Gearbox Reset,Coolant Bleeding, Transport Reset,Seat Calibration,High Voltage Battery Detection,Sunroof Initialization,Engine Power Balance Monitoring,Language Change,Gas Particulate Filter (GPF) Regeneration,Intelligent Cruise Control System Reset .Powerful dealership level Functions can fully meet your needs.

4. ADVANCED ECU CODING, SAVING TIME&MONEY FOR YOU! Launch X431 CRP919EBT scan tool newly adds ECU Coding which can Online Coding(ONLY for VW for Audi for Skoda), Variant Coding/Offline Programming, Flash Hidden Functions, Reset Adaptive Data, Match Replaced Components, Customize OE-Settings. Such as: halogen fog lamps retrofitted with xenon fog lamps, different capacity battery retrofit, disbale auto start-stop, sunroof initialization, injector calibration, etc. PS: Coding functions vary by model&year.

5. CANFD&DOIP+FCA AUTOAUTH+V.A.G GUIDED.Launch X431 CRP919EBT has over $800 worth of new features, including:CANFD Protocol, for GM (2019-) DOIP Protocol(Need to extra purchase Adapter), for BMW (F&G chassis), for Volvo (2018-),for Land Rover for Jaguar (2017-). Autoauth for FCA SGW, supports for Chrysler, for Jeep,for Dodge,for Fiat etc. 2017 and later. Guided Function for Volkswagen for Audi for Skoda for Seat, provides step-by-step repair guidance for you, prevent car fault setting caused by wrong operation.

6.POWERFUL BIDIRECTIONAL CONTROL,Same as Snap-on code readers, LAUNCH X431 CRP919EBT inherits the powerful Bi-directional Control, which costs performance in similar products of great advantage. Active test means sending commands to the ecu to test its operating status without using the vehicle controls, quickly understand whether a specific system/component is operating normally, such as EVAP Solenoid/Windows/Wipers/... significantly reduce diagnostic time, improves 5X faster efficiency.

7.Professional Full OBDII Functions Code Reader,supports all 10 modes of OBDII standard to ensure complete, accurate, system diagnosis. Read and Clear DTCs, do smog tests , I/M readiness and O2 sensor tests, Mode 06 EVAP system test, Mode 08 on-board test component test. And OBDII Code lookup tool and acronym database to assist and speed diagnosis and repair time.

8. 23 Languages,Support 23 different languages,English,Italian, English, German, Japanese, Russian, French, Spanish, Portuguese , Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Serbian, Finnish, Swedish, Czech, Simplified Chinese, chinese traditional,you can switch language feely

9.Fantastic Auto VIN, Support Automatic Autovin Scan, allows you to get your vehicle’s make, model, and year info rapidly, no need to manually enter your VIN code. You can generate a vehicle health report by one-click and easily share it with your mechanic friend for problem analysis!

10. High Performance Hardware,With Android 10.0 tablet, 7" LCD touch screens. 2.4GHz&5GHz dual-band Wi-Fi, the transmission rate is 4 times faster than the old version. 6300mAh rechargeable battery (up to 13 hours or more of battery life) 4+ 64gb (The system displays 25 GB) storage to save more vehicle documents and customer data. .CPU processor updated from 2.0GHz, quad core to perform diagnostics quickly and efficiently.8XFAST AUTO VIN technology.

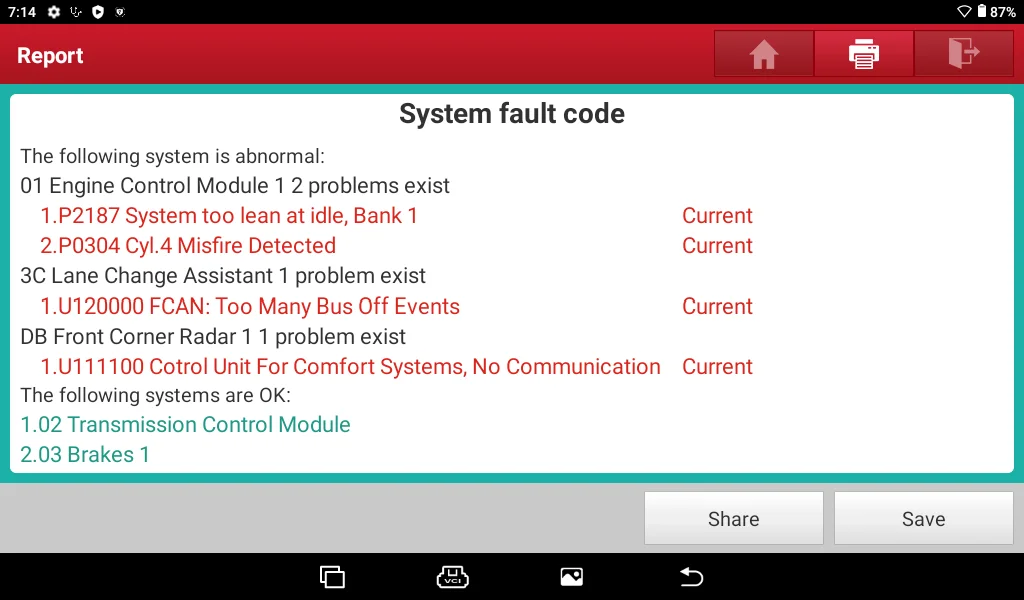

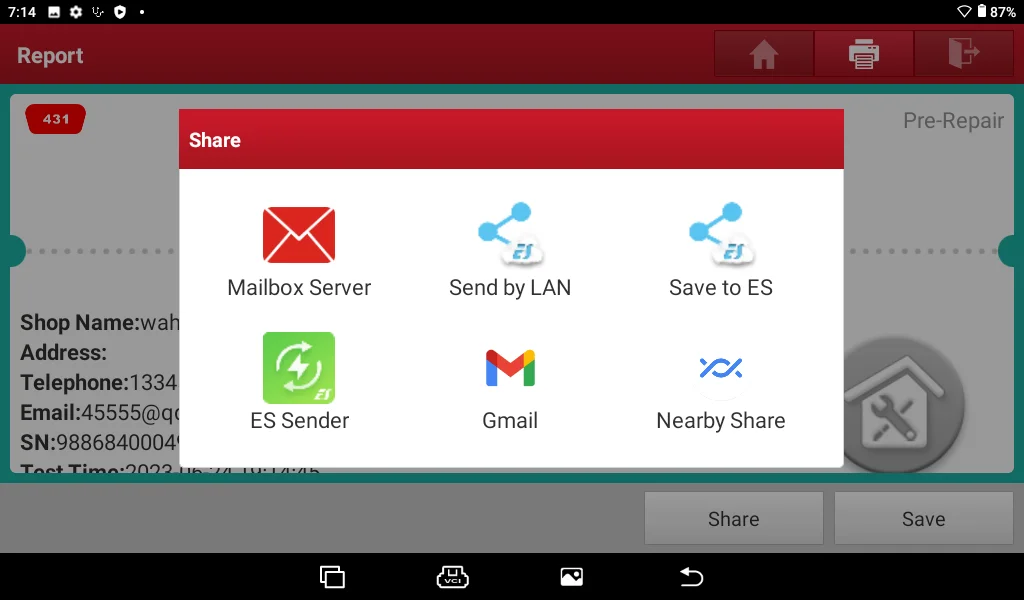

11.Data Record Playback + Online Feedback + Vehicle Report Share & Print,Feel confused about certain diagnostic problems? LAUNCH X431 CRP919EBT diagnostic scanner allows you to submit online feedback of your diagnostic problems to LAUNCH for analysis and trouble-shooting. In addition, this CRP919EBT diagnostic tool can automatically generate a diagnostic report to list the detailed inspection result once the scan is complete. You can transmit the health reports via E-mail to share it to your friends.

12.OE-Level car coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.

13.2 year Free Update. Enjoy 2 year Free update + Lifetime free to use.

14.Five Years Warranty. We offer free aftersale service within 5 years.

Specification for LAUNCH X431 CRP919BT

Display: 7-Inch ，1024*600 HD IPS
Android version : Andoird 10.0
CPU: 4-Core Processor, 2.0 GHz
Battery： 6300 mAh / 7.6V
Equivalent ： about 12600mAH (3.7v)
power: about 47.8Wh
Camera: real 8 million pixels
WI-FI: 2.4GHz /5GHz
Packaging size : 323*254*131mm
Product gross weight:2.9kg
Working Temperature:0℃~50℃ (32℉~122℉)
size： 218*154*39.5mm
Runing memory:4GB
Storage size: 64 GB (system displays 25 GB)
Upgrade method: Online upgrade
Charging power: 5V 5A (25W)
DBScar VII VCI connector parameters support CANFD and DOIP (DOIP requires the purchase of adapter cables)
Working voltage: DC 9-18V
Communication method: Bluetooth
Working temperature: -10~50 ℃
Size: 118.3 * 69.5 * 32 (mm)

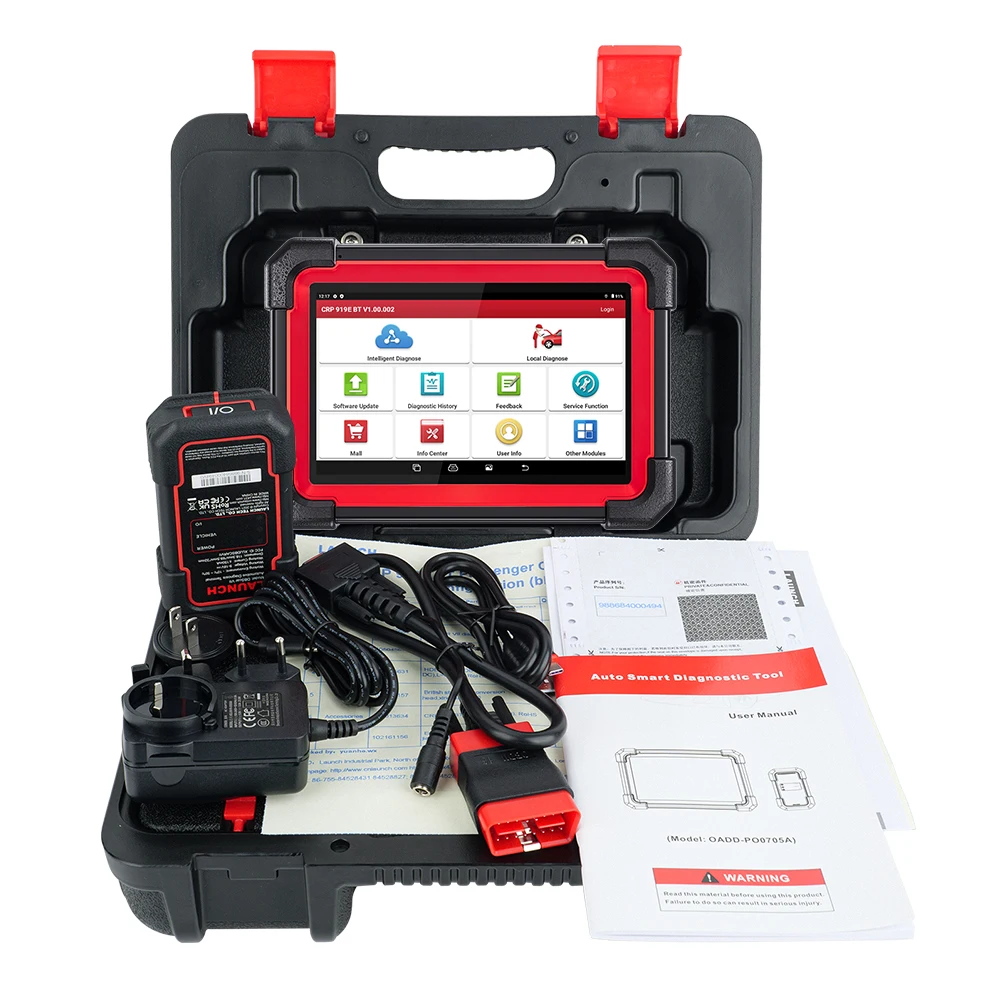

Package List

1*Display tablet
1 * VCI connector
1 *Diagnostic cable
1 *Password envelope
2 *Switching adaptors
1 *Power adaptor
1* Type-A to Type-C USB cable
1 *Quick Start Guide

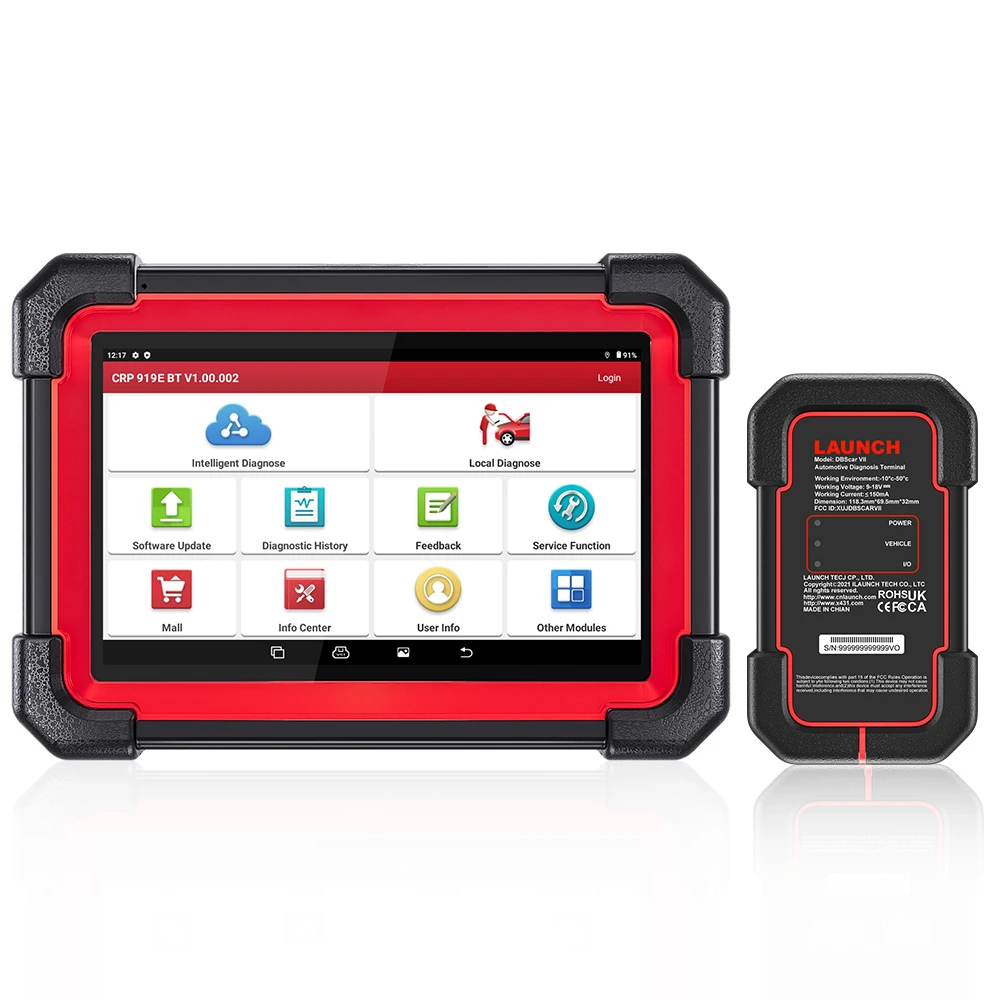

1. LAUNCH X431 CRP919E BT is an upgraded version of CRP919E

CRP 919 BT is a new generation of 7-inch automotive intelligent diagnostic equipment with high configuration and super performance. The host is developed based on Android 10.0 system, adopts 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery to make diagnosis faster, more stable and more durable; the products inherit the functions and advantages of CRP 919 products, and expand the memory And storage size, equipped with the latest CarVII Bluetooth diagnostic connector, to give customers a better user experience

2. FIRST All System Diagnostic Scan Tool

The LAUNCH CRP919E BT auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Supports Full System Diagnostics: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

3.Over 31 Service Reset Functions

including ABS Bleeding,TPMS Reset,Oil Lamp Reset, Electronic Throttle Sensor Reset,Injector Coding,SAS Reset,Brake-pad Reset,Gear Learning,IMMO Service,Battery Matching,DPF Regeneration,EGR Adaption,Suspension Matching,NOx Sensor Reset,Tyre Reset,Windows Calibration,Stop-start Reset, AC Initialization,AdBlue Reset,AFS Headlamp Reset,A/F Reset,Gearbox Reset,Coolant Bleeding, Transport Reset,Seat Calibration,High Voltage Battery Detection,Sunroof Initialization,Engine Power Balance Monitoring,Language Change,Gas Particulate Filter (GPF) Regeneration,Intelligent Cruise Control System Reset .Powerful dealership level Functions can fully meet your needs.

1.ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset
When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset
Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4. Electronic Throttle Sensor Reset
To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS Reset
It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9.IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching
Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration
It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching
When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.NOx Sensor Reset
If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory.

17.Stop-start Reset
This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization
AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset
This function enables you to initialize the adaptive headlamp system.

21. A/F Reset
This function is applied to set or learn air/fuel rate parameters.

22. Gearbox Reset
This function enables you to complete the gearbox self-learning to improve gear shifting quality

23. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

24. Transport Reset
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.

25. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

26. High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status information detection.

27. Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.

28. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language Change
This function is used to change system language of vehicle center console.note:you need to have language pack to do language change


30. Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it is replaced or repaired.

(Note: Available maintenance functions vary depending on the vehicle make, year, and model.)

4.2024 ADVANCED ECU CODING,

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

1.Online Coding: Compatible with VW/ Audi/ Skoda/ Ford/ Lincoin/ Mazda ONLY
2.Offline Coding: Compatible with Benz/ BMW/ Ford/ Mazda /Jaguar /Vauxhall /Opel, etc
3.Refresh the Hidden Features(Personalization)
4.Component Matching: Matching, relearning, calibration
5.Customize OE-Settings(Retrofitting/Modification)
Note: Coding functions vary by model. Check the compatibility by sending VIN to us

5.Support CANFD&DOIP+FCA AUTOAUTH+V.A.G GUIDED

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience. Supports For Chevrolet Onix 2020-2021 year Supports For Chevrolet Tracker 2020 year Supports For Chevrolet Suburban 2021 year Supports For Chevrolet Tahoe 2021 year Supports For Buick Supports For Cadillac Escalade 2021 year Supports For Cadillac Escalade 2021 year Supports For GMC Yukon 2021 year Supports For GMC Yukon XL 2021 year Supports For Holden Supports For DAEWOO Supports For Alpheon Supports For Ravon Supports For Pontiac Supports For Saturn Supports For Hummer

Tips:

( Note : this is car list that CANFD and DIOP supports , CRP919E also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

DOIP：

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP909X save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).
