2025 LAUNCH X431 Pro3s Plus V5.0 10.1" Full System Car Diagnostic tools ECU Coding Bi-directional controal Topology Mapping

2024 New LAUNCH X431 PRO3S+ V5.0 Added Functions : Topology Map ,improving your working efficiency highest than ever.

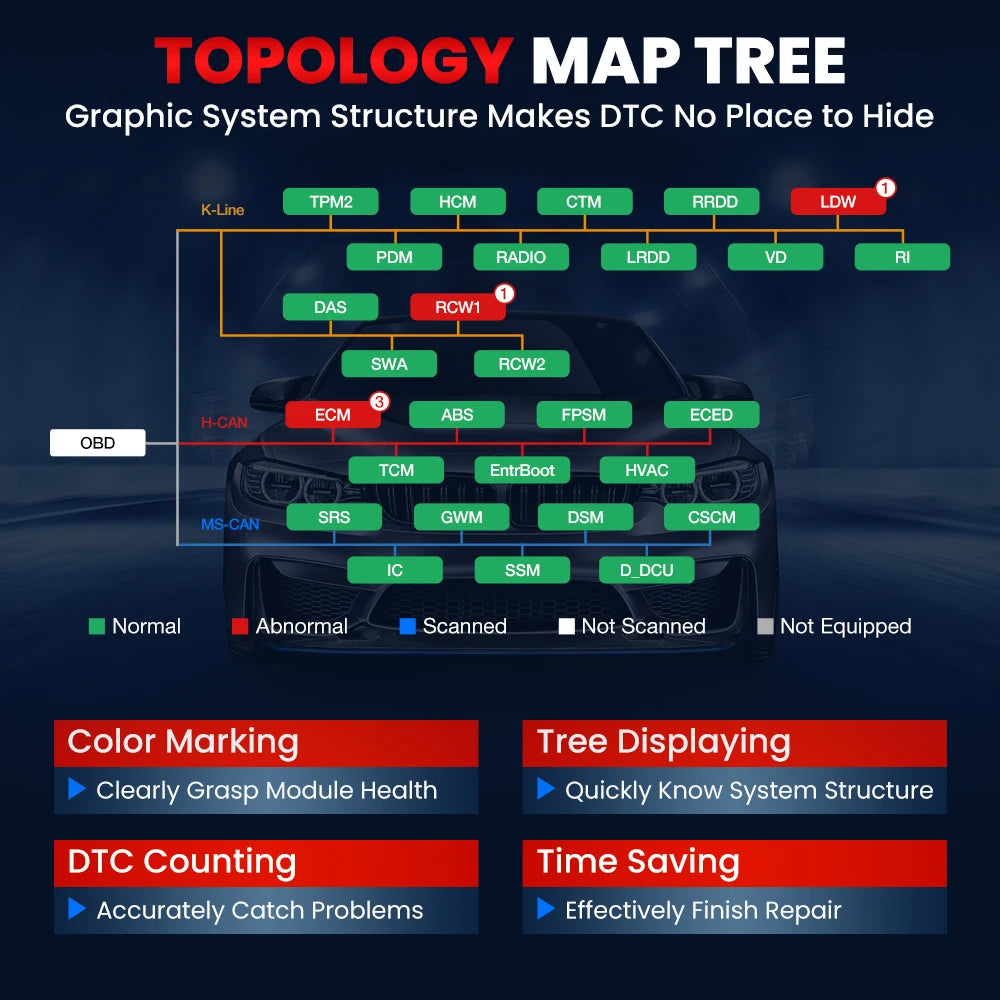

* Introducing the revolutionary function of topology mapping in automotive diagnostic products! Say goodbye to guesswork and hello to precision with our advanced technology that allows you to easily identify and locate faults in your vehicle's electrical system. With topology mapping, you can quickly and accurately diagnose issues, saving you time and money on costly repairs.

* Our cutting-edge diagnostic tools provide a comprehensive view of your vehicle's electrical system, giving you a detailed map of all the components and their connections. This allows you to quickly pinpoint any faults and troubleshoot with ease. Whether you're a professional mechanic or a DIY enthusiast, our topology mapping feature is a game-changer that will take your diagnostic capabilities to the next level.

* Don't settle for outdated diagnostic tools that leave you guessing. Upgrade to our topology mapping technology and experience the future of automotive diagnostics today. With our products, you'll have the power to diagnose and fix problems with confidence, ensuring your vehicle runs smoothly and efficiently. Try it now and see the difference for yourself!

LAUNCH X431 PRO3S+ V5.0 support all Systems Diagnostic Tool (Faster and more effective than OE-level coverage diagnostic equipment）

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition
--ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
--Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

What is Full Bi-Directional Control ( ACTVE TEST) function?

* With this diagnostic tool's Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle's control;

* [ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

* Available test varies by the vehicle manufacturer, year, and model.

What is ECU CODING Function ?

Why does the car not work normally after replacing ECUs/ modules?

When an ECU/module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.

What can LAUNCH X431 PRO3S+ Scanner do?

Featuring ECU/Module replacement functions, LAUNCH X431 PRO3S+ Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

ECU Coding: Customize Your Car in Minutes

* Same as other LAUNCH X431 High-end OE-level scan tool , LAUNCH X431 PRO3S+ has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.

* Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.

* Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.

* Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.

* Reprogram the adaptive data for certain components after repairs or replacements.

* ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

LAUNCH X431 PRO3S+ V5.0 Supports Guided Function for Volkswagen/Audi , the following function need Guided Function :

√Service Regeneration,Particle Filter(DPF)

√Adapt Injector Correction Value

√ Reset Engine Control Adaptation Values

√ Throttle Learning

√ Fill Coolant Circuit

√ Adapt Values,SCR system

√ Activating/Deactivating Cruise Control System

√ Basic Setting Of Transmission

√ Basic Setting of Sensors (-G85/-G200/-G201/-G251)

√ Basic Setting/Bleeding Brake System

√ Initial A/C Compressor Run-In

√ Adaptation Automatic Locking At 15 km/h

√ Distance Control System Calibration

√ Deactivate Or Activate Airbags And Belt Tensioners

√ Adaptation Menu Key Multifunction Steering Wheel

√ Adapting Service Intervals

√ Service Interval Display ,Resetting

√ Transport Mode, Switching Off/On

√ Level Control System Basic Settings

√ Brake Pad Change

√ Headlight Beam Adjustment

√ Battery Adaptation

√ Rear View Camera System Calibration

√ Driver Assistance Systems Front Sensor System Calibration etc.

LAUNCH X431 PRO3S+ V5.0 Supports 12 in 1 graphic data stream

view and capture (record) real-time Live Data. This data including current operating status for parameters and /or sensor information can provide insight on overall vehicle performance. It can also be used to guide vehicle repair.

LAUNCH X431 PRO3S+ V5.0 Supports 36+ Special Reset Service Functions

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

.......

LAUNCH X431 PRO3S+ V5.0 Other Function :

Aut VIN Scan : VIN scan quick test and manual diagnosis are available.support all system diagnosis of passenger car

Remote Diagnosis : help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster. If you encounter a diagnostic problem that can not be solved by yourself, you can ask assistance for professional Mechanic.

Vehicle Health Report Share and Print : Auto generate vehicle health report, and it can be shared via email, then print it on computer.

Diagnostic Feedback : If you the scanner can not scan any car system or functions does not support, you can submit diagnostic feedback, then send serial number to us, we will deal the case soon.

Data Review : It allows you playback the stored data and diagnostic process, help customer compare current and past data.

Online Database : is fully filled with abundant repair cases( Circuit diagram / maintenance handbook)and automotive technology handbook for your easier retrieval and reference.

LAUNCH X431 PRO3S+ V5.0 Supports car list :

Supports 10000+ car models from America, Europe, Asia (Including Russian car models, Chinese car models, Indian car models, Malaysian car models, Australian car models, Brazilian car models, Latin American car models and other national models，including cars, SUVs, minvans, 12v light-duty trucks, gasoline cars and diesel cars.

EUROPE Cars :

For Audi, For Mercedes-Benz, For Maybach, For BMW, For Mini, For HCBMW, For Rollsroyce, For Citroen, For Fukang, For Ferrari, For Fiat, For Abbas, For Lancia, For Romeo, For NanjingFiat, For GAZ, For LandRover, For Jaguar, For Martha Lahti, For Open, For GMSA, For Vauxhall, For Peugeot, For DFPeugeot, For Porsche, For Renault, For Dacia, For Rover, For SAAB, For Skoda, For Seat, For Smart, For Transporter&V-Class, For VAZ, For Volvo, For VW, For Bingley, For Bugatti

America Cars :

For Brazil Fiat, For Brazil GM, For Chrysler, For Dodge, For Jeep, For GM, For Buick, For Cadillac, For Chevrolet, For Ford, For ChinaFord, For Lincoln, For EuropeanFord

Asia Cars :

For Daewoo, For Daihatsu, For Honda, For Acura, For DFHonda, For GZhonda, For Hyundai, For Ikco, For India Mahindra, For India Maruti, For India Tata, For JPIsuzu, For TLIsuzu, For Kia, For Luxgen, For Mahindra, For Malaysia Asia Pacific Perodua, For Malaysia Asia Pacific Proton, For Maruti, For Mazda, For YQMazda, For Mitsubishi, For Nissan, For Infiniti, For DFNissan, For Perodua, For Proton, For SAIPA, For Ssangyong, For Subaru, For Suzuki, For TATA, For Toyota, For Lexus, For TJToyota

Australia Cars :

For Australia Ford, For Australia Horton

China Cars :

For Chang'an, For ChangCheng, For Chenghe, For DR automotive, For ECUADI, For BYD, For Foton, For Hafei, For Haima, For Brilliance, For Jiangling, For Iveco, For Jac JAC refine general, For Gonow Auto, For Xiamen Golden, For Kowloon, For Lifan auto, For GSMW, For SAIC Chase, For MVW Automotive, For Chery, For SAIC and MG, For SGM, For CHCHEVROLET, For CHBuick, For CHCadillac, For Tianjin FAW, For XinKai, For ZhongShun, For ZOTYE, For Zhongxing

LAUNCH X431 PRO3S+ V5.0 diagnostic scanner has supported various extended modules (needs to buy additionally) :

X431 HDIII MODULE : With this model , X431 pro3s+ supports 24V diesel heavy-duty-trucks(NEED TO BUY ADDITIONALLY) , you also can choose X431 PRO3S+ HD modelpackage to order directly !

LAUNCH VSP-600 VIDEOSCOPE : Check unseen parts of engine, fuel tank system, etc.

X431 TSGUN : Activate all sensors,TPMS relearn, Program LAUNCH sensors

X431 X-prog 3 : Professional auto key programmer tool , it supports almost kinds of cars in the work , also supports all key lost !

X431 BST-360 Battery tester : it supports Battery Health Test , Smart System Test , Charging Health Test and Test Record

X431 wifi mini PRINTER : Print out diagnostic data/reports

ADAS EQUIPMENT : Calibrate a wide range of camera-based & radar-based driverassistance systems

UPGRATE For BENZ: Optimized ADAS function & Query VIN for police equipment;pdated DPF function of diesel engine

UPGRATE For SPRINTER: Added the data stream, actuation test and special functions for some systems, like the headlight range regulation module, etc.

UPGRATE ForLANDROVER: Added Camera Calibration(Land Rover models from 2010 to2014)& ADAS function (Jaguar & Land Rover from 2017 to 2020)

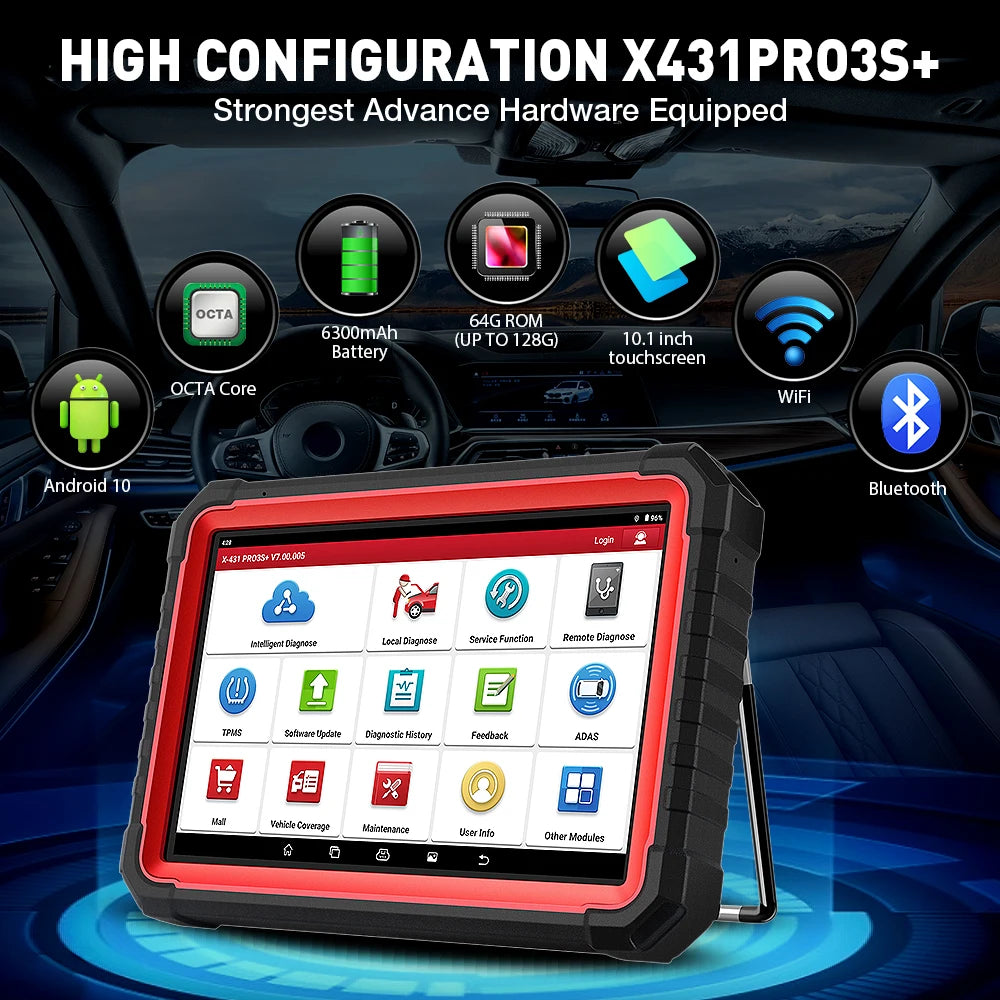

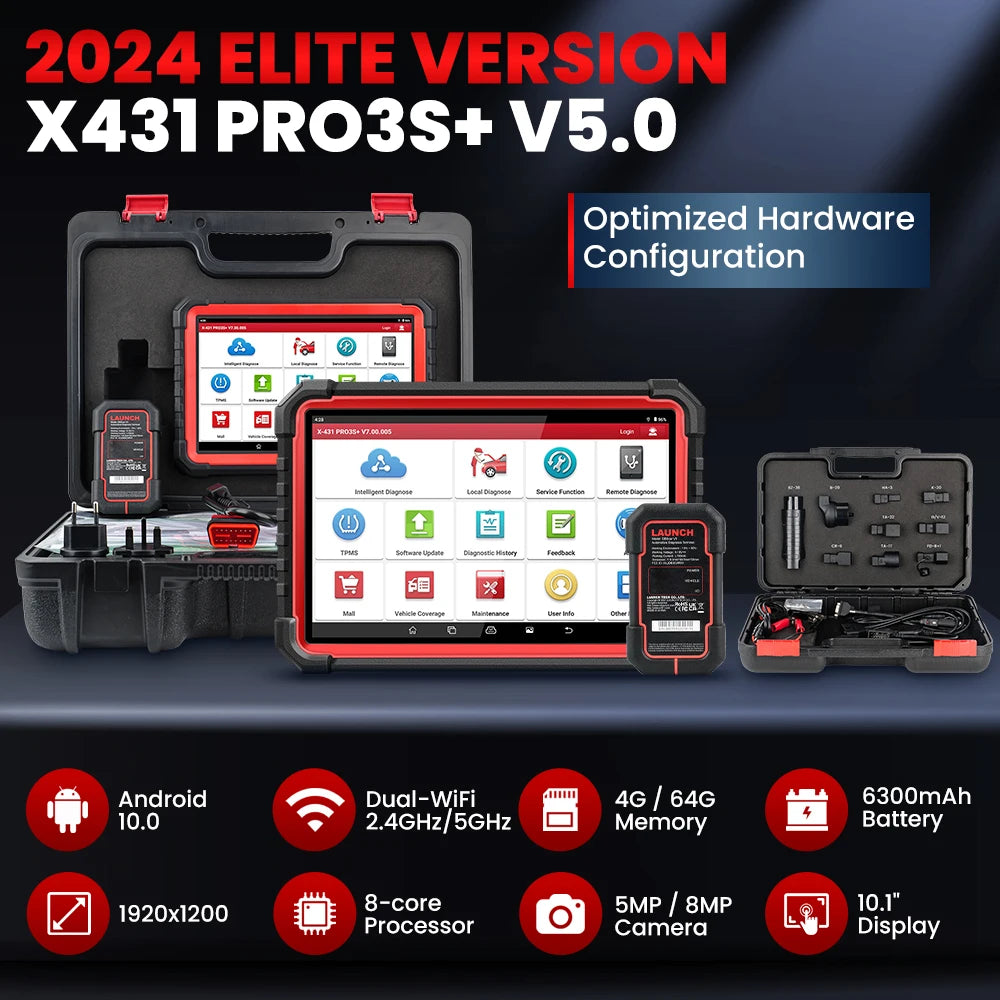

LAUNCH X431 PRO3S+ V5.0 parameter:

Operating System : Android 10 OS

CPU : 2.0GHz 4 core

Screen Size : 10.1 inch 1280*800 FHD IPS Touch Screen

Battery : 6300mAH 7.6V

Memory : 4GB+64GB

Camera : Rear 8.0MP

WIFI : 2.4GHz&5GHz Dual-Frequency Wi-Fi, 4X faster transmission rate

Working Speed : 8X Faster AUTO VIN Technology, Time is Money!

Work Temperature : 0℃～50℃

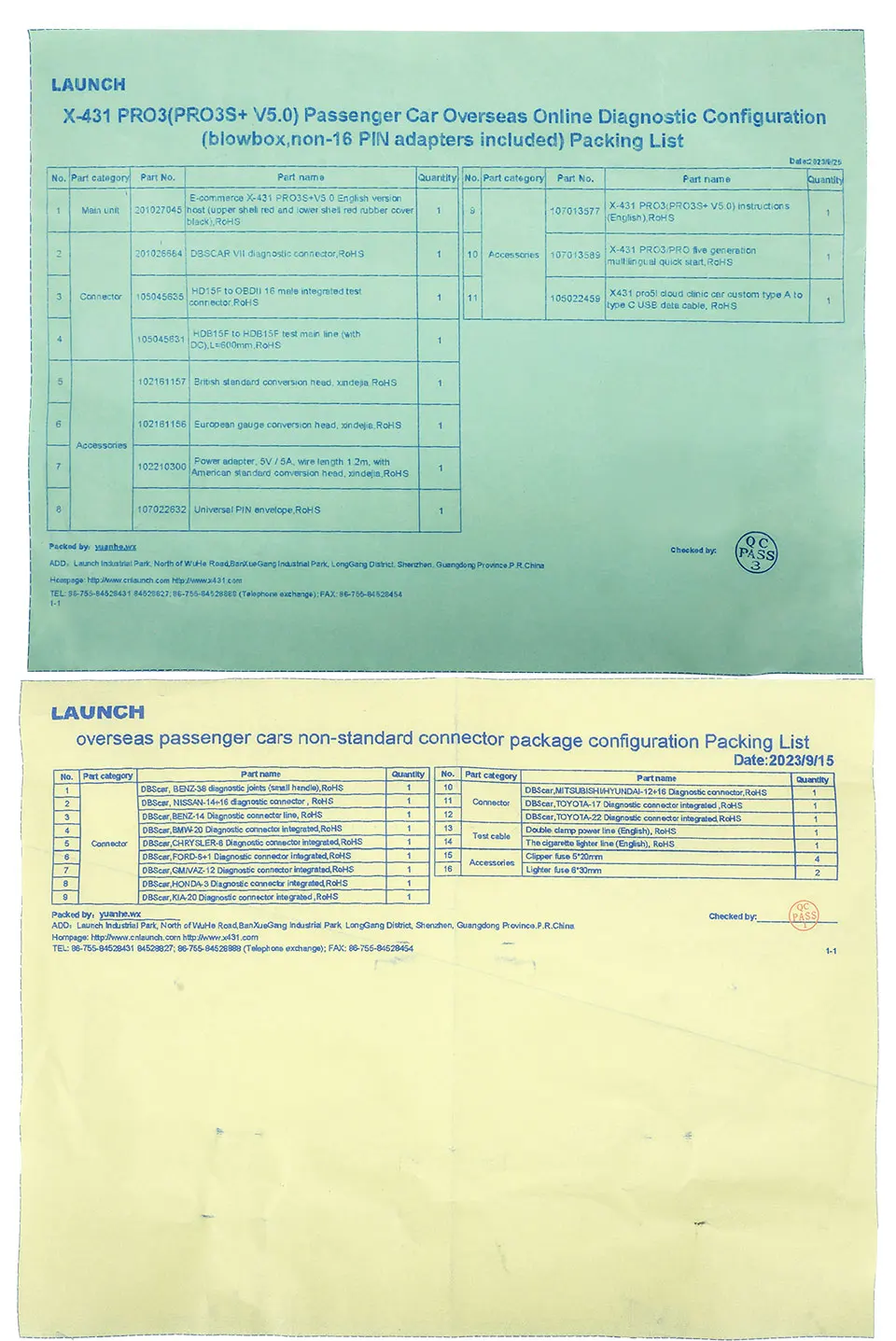

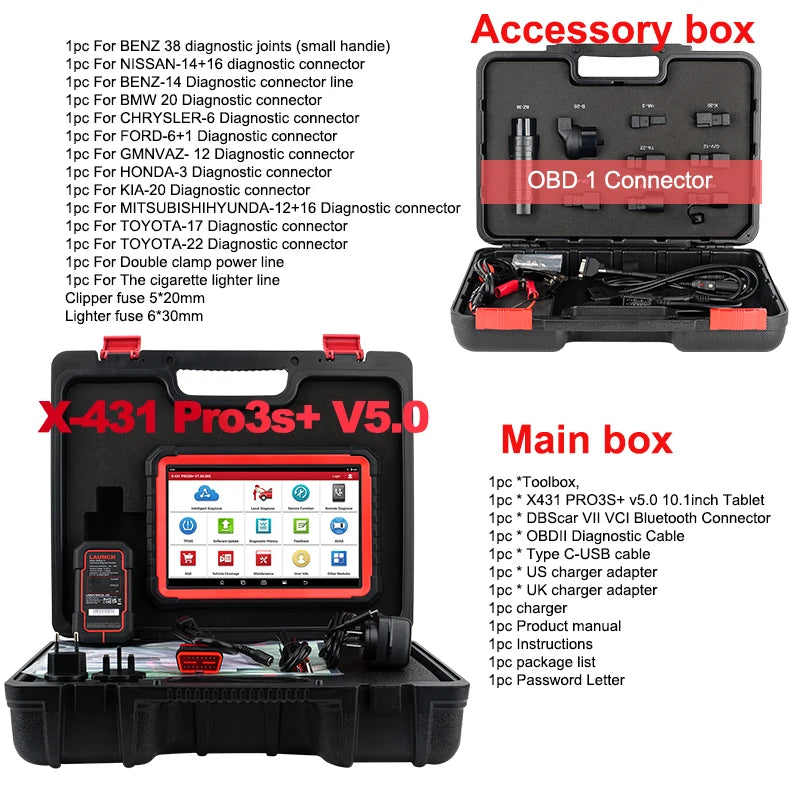

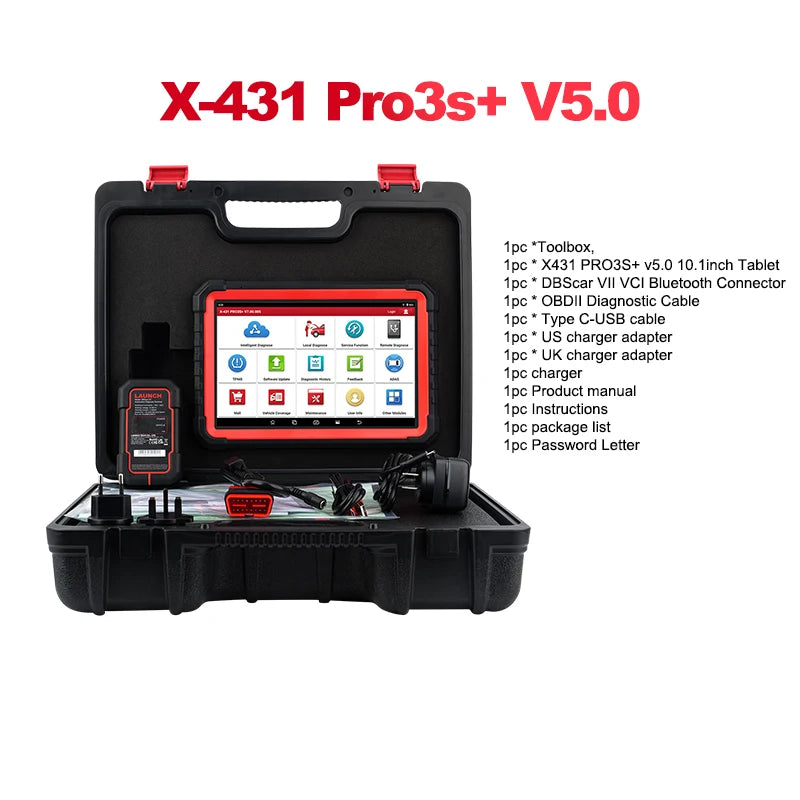

LAUNCH X431 PRO3S+ V5.0 Packing List :

1pc X431 PRO3S+ V5.0 10.1 inch Tablet PC

1pc DBScar IV Bluetooth Connector

1pc OBD II Cable

1pc For Mitsubishi/Hyundai-12+16pin Cable

1pc For Benz-14pin Cable

1pc For Benz-38pin Connector

1pc For BMW-20pin Connector

1pc For Chrysler-6pin Connector

1pc For Ford-6+1pin Connector

1pc For GM/VAZ-12pin Connector

1pc For Honda-3pin Connector

1pc For Kia-20pin Connector

1pc For Nissan-14+16pin Connector

1pc For Toyota-17pin Connector

1pc For Toyota-22pin Connector

1pc Cigarette lighter Cable

1pc Double Clamp power Cable

1pc US Power Adapter 5V,2A

1pc EU * UK Power Adapter 5V,2A

1pc USB to micro data Cable
