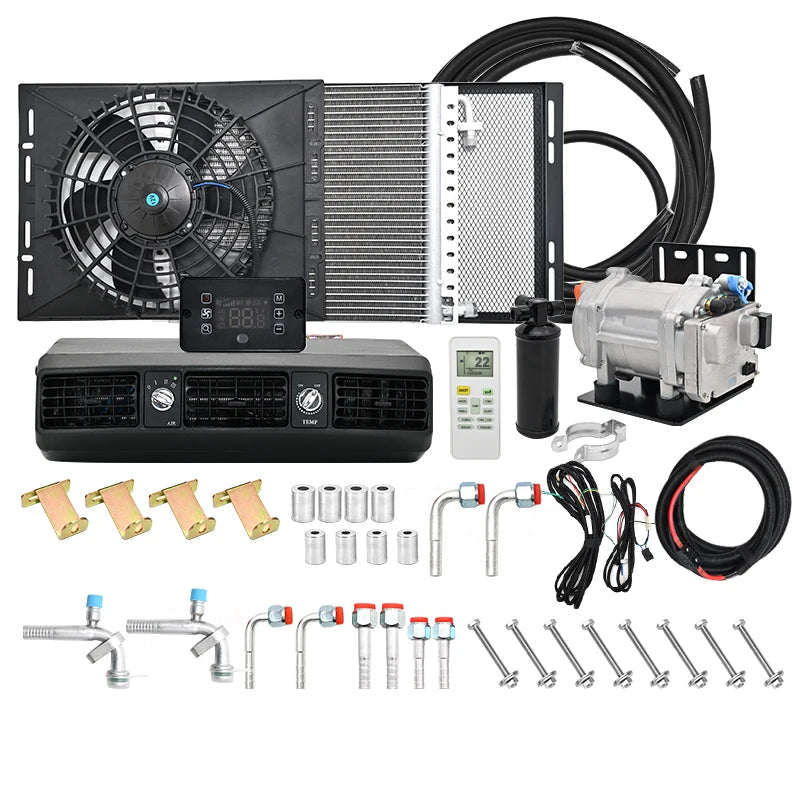

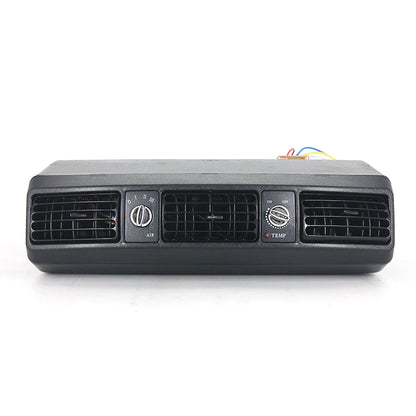

202 Universal Electric Compressor Car A/C 12V/24V Truck Air Conditioning Systems Air Conditioner Unit For Camper Van

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.

Pay attention:

1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.

Generator (battery) request:

12V compressor require generator ampere over 100a

24V compressor require generator ampere over 70A.

About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

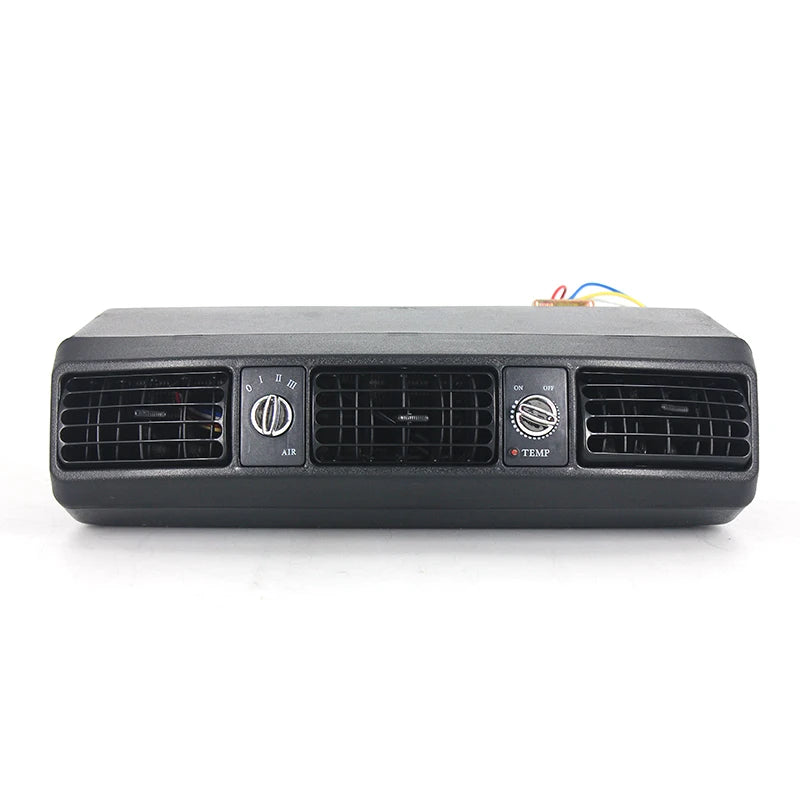

Evaporator:

Cooling capacity: About 137000Btu/h

Evaporator coil: 32 passe 4way toda a bobina do alumínio

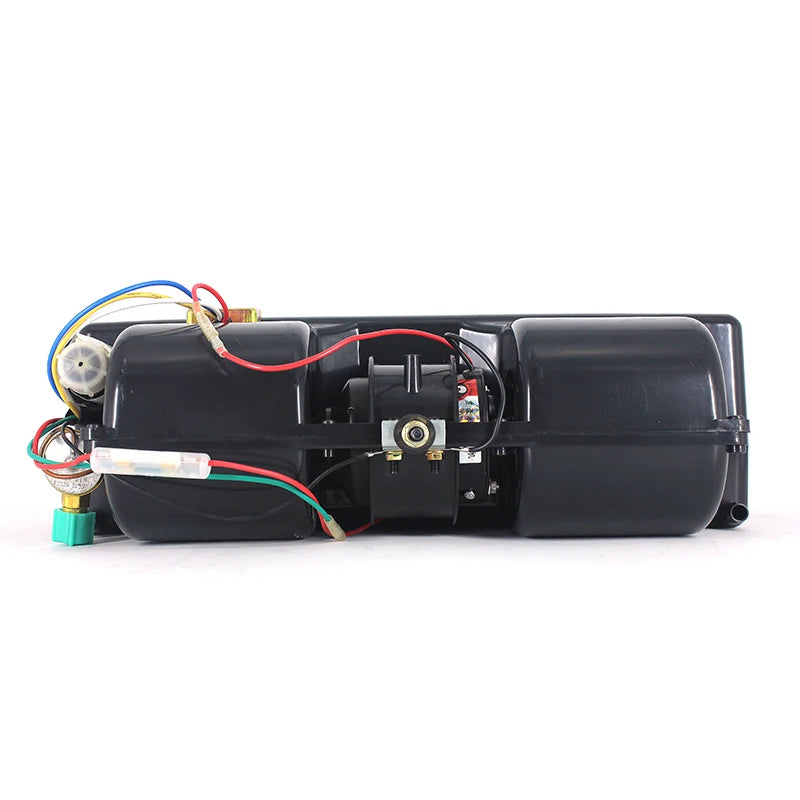

Evaporator blower motor power: 80-100W

Switch: Temperature and 3-speed blower switch

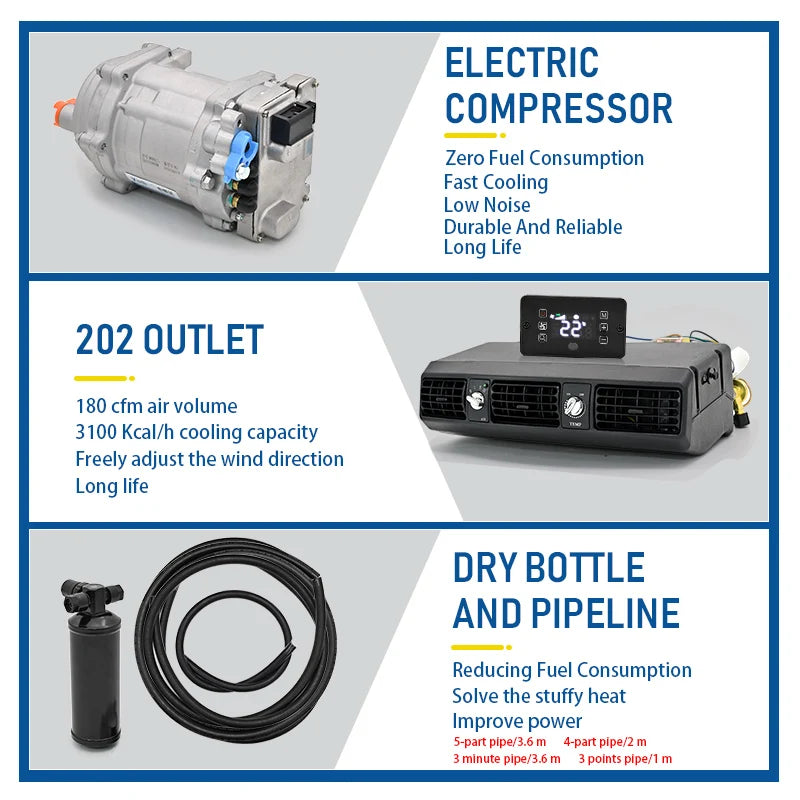

Compressor Data:

Compressor type: semi-hermetic horizontal scroll compressor

Material: aluminium alloy

VoltageDC-12V

Displacement20cc/r

OilRL68H(POE)) 120ml

Refrigerant (Gas)R134a

Operating voltage9.5V-15V

Variable frequency voltage4V-9V

Rated power:650W~800W

Refrigeration capacity>2200W

Speed range1000-2500rpm

Overcurrent protection80A

COP3.3

Max Noise<70dB(A)

Suction pipe inner size∅18.3mm

Discharge pipe inner size∅15.5mm

Led blinking：

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.

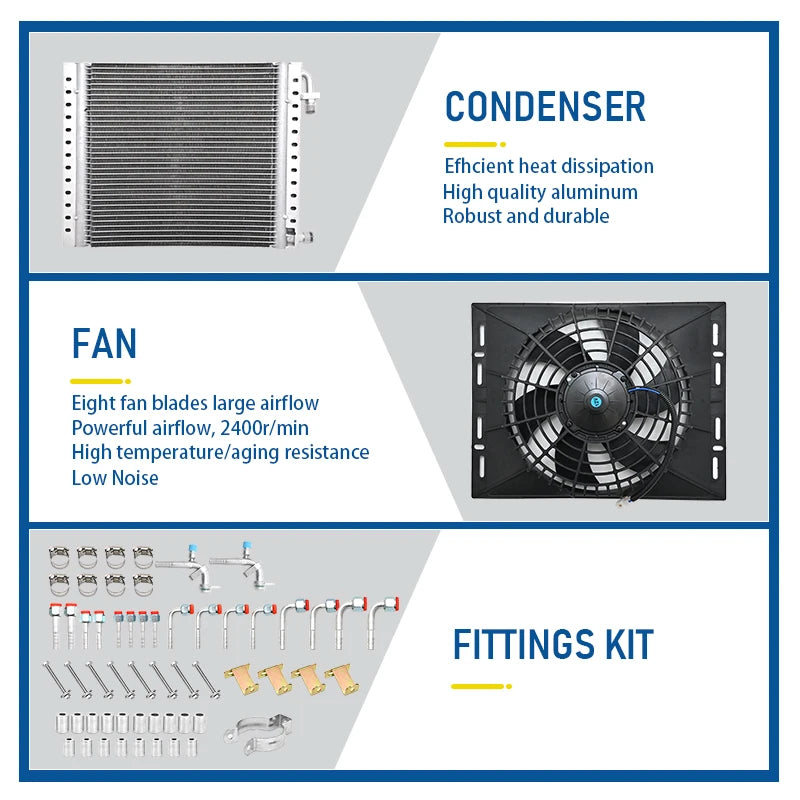

Condenser Outside unit:

Power : 120w

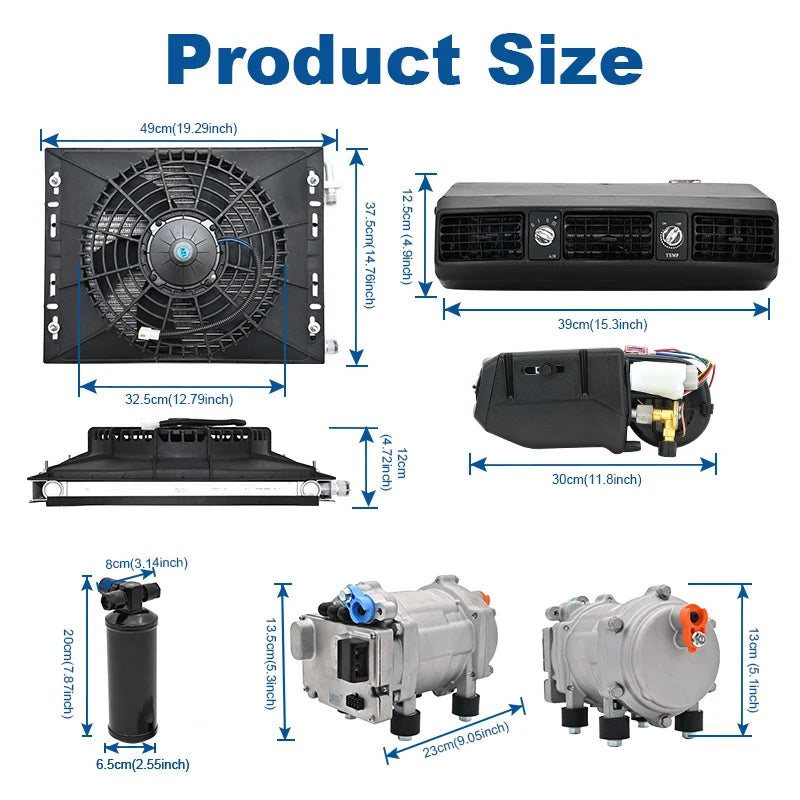

Outside Unit Dimension (Inch): 19.29x 14.76 x 4.72 inch
